Cut off rear wheel well section - AR63.10-P-0662-01CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Shown on model 204.0

Scribe separation point on outer rear wheel well (1) along bead (area A).
Cut outer rear wheel well (1) at separation point (area A).
Do not damage rear fender below (area A).
Cut outer rear wheel well section (2) at separation point (area B).
Outer rear wheel well section (2) is glued to rear fender in area B.
Remove outer rear wheel well section (2).
Remove remaining adhesive in area B.
A maximum of 2 mm of adhesive residue may be left Pull off loose adhesive material (remaining pieces which are not completely cut off).

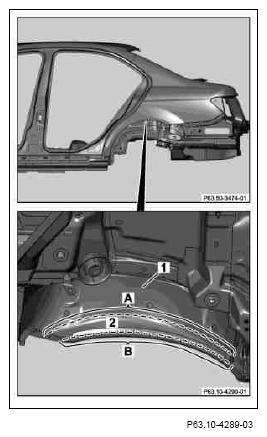

Fig 1: Identifying Outer Rear Wheel Well Separation Points
Courtesy of MERCEDES-BENZ USA
Repair bare parts with touch up applicator.
Remove shavings and drill chips.
