Wheel Alignment Form - OF40.20-P-3000-01B

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 129, 140, 163, 166, 168, 169, 170, 171, 172, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 240, 245, 246, 450, 451, 452, 454

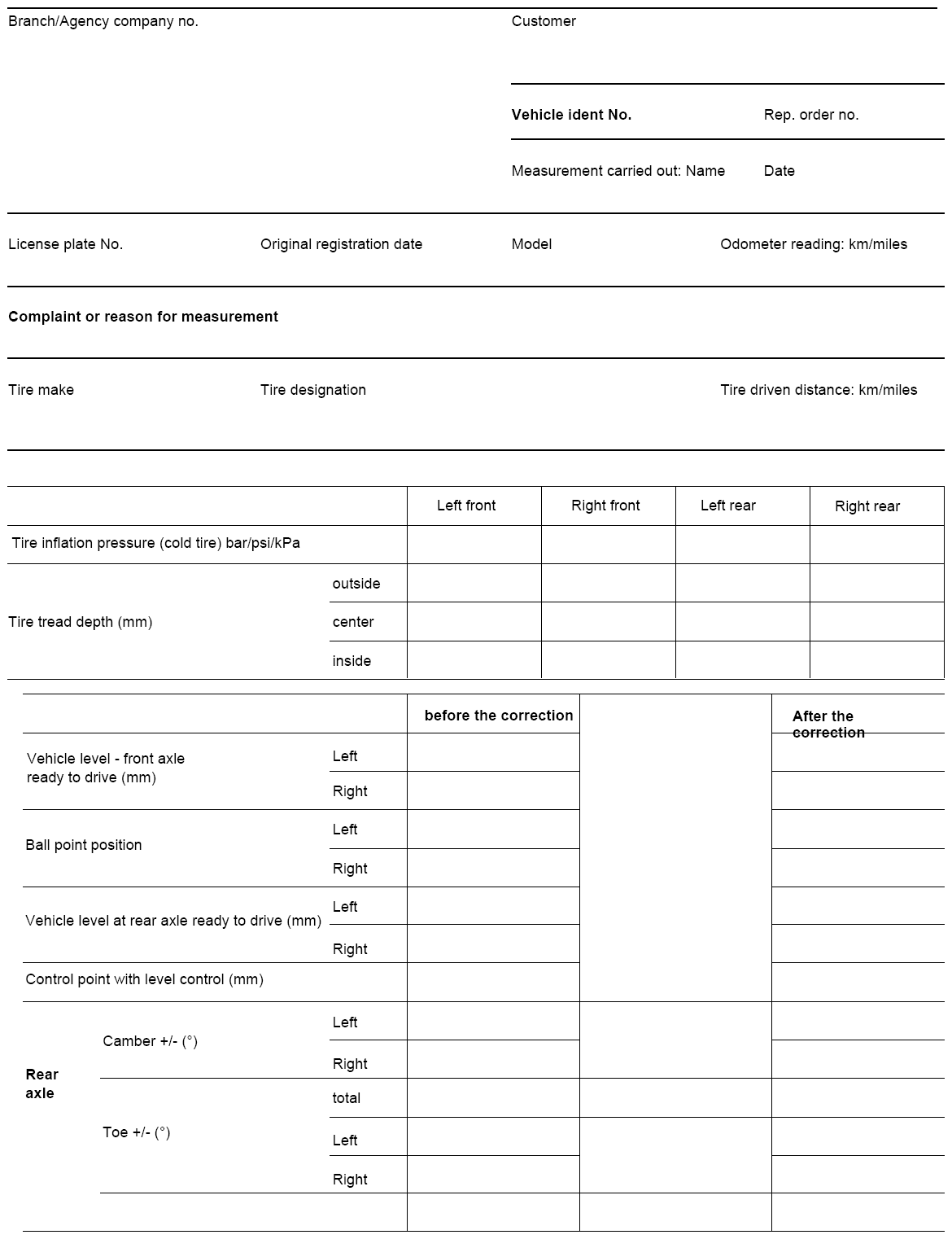

Fig 1: Wheel Alignment Worksheet (1 Of 2)
G07741122Courtesy of MERCEDES-BENZ USA

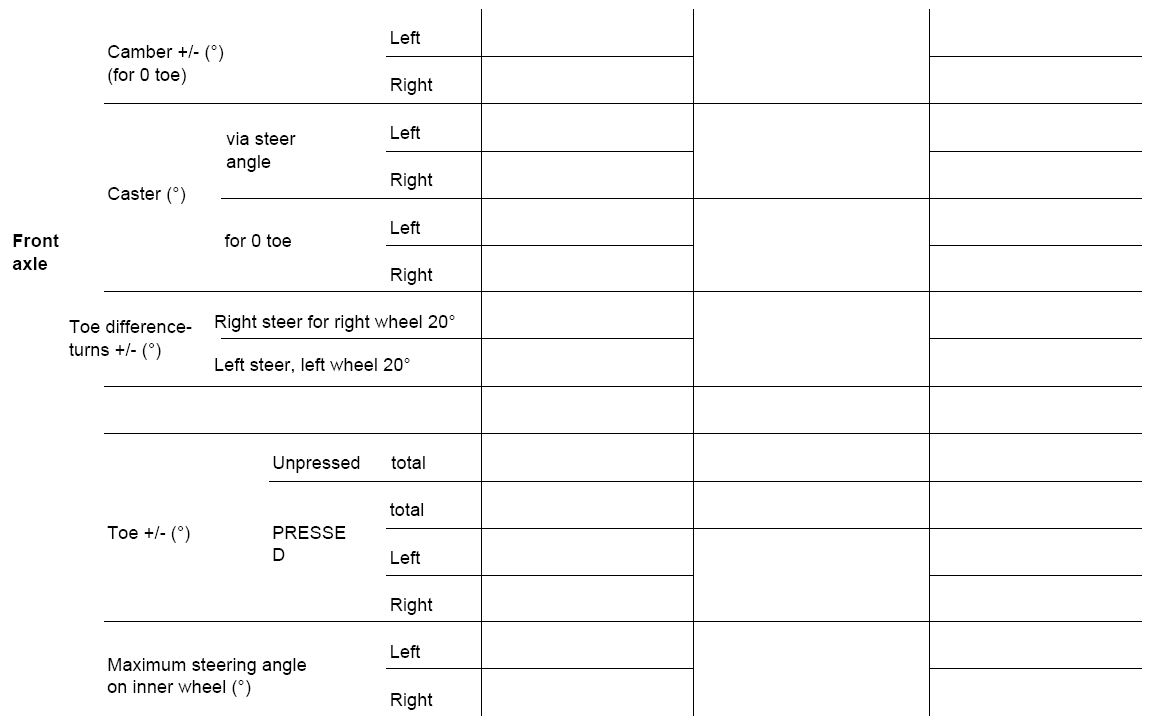

Fig 2: Wheel Alignment Worksheet (2 Of 2)
G07741123Courtesy of MERCEDES-BENZ USA
