Attaching Mercedes-Benz quick-clamping devices - AR40.20-P-0230SX

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 172, 197, 204, 207, 212, 216, 218, 221.0/1, 246

Shown on model 221

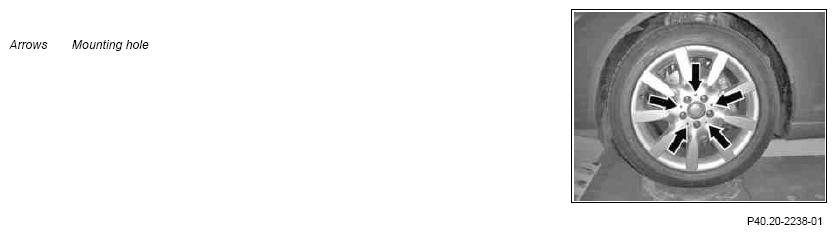

Fig 1: Locating Wheel Mounting Holes

Courtesy of MERCEDES-BENZ USA

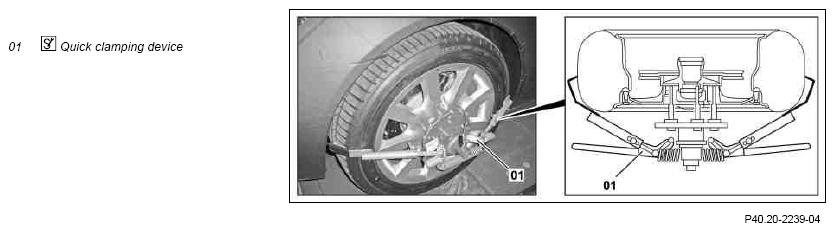

Fig 2: Attaching Quick-Clamping Device

Courtesy of MERCEDES-BENZ USA

	Installing, removing
1	Attach quick-clamping devices (01) to the front and rear wheels and remove clamping handles	Quick-clamping device The mounting bell is centered on the front wheel hub or rear axle shaft flange by locating the tracer pins in the five mounting holes (arrows) in the rim. Check the quick clamping devices (01), wheel mirrors and measurement pickups at regular intervals in accordance with the manufacturer's instructions.	Fig 3
2	Attach wheel mirrors or measurement sensors
3	Remove in the reverse order

Fig 3: Identifying Quick-Clamping Device (124 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
