Remove/install wheels, rotate if necessary - AP40.10-P-4050Z

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240

MODEL 414

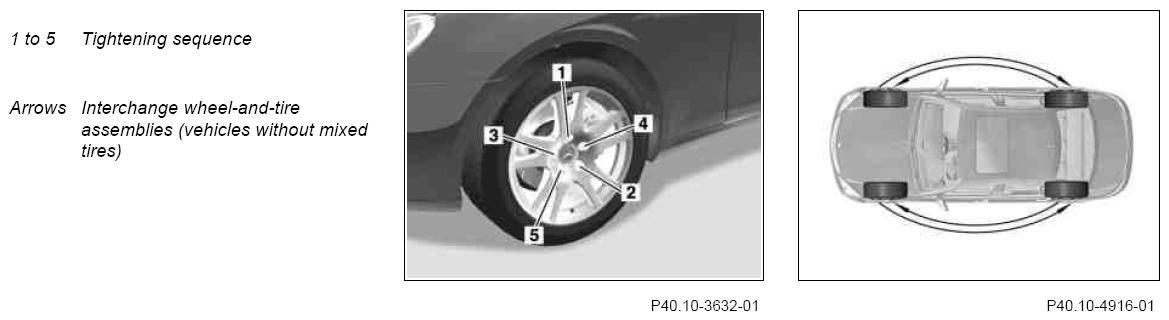

Fig 1: Wheel Bolts Tightening Sequence & Wheel Interchange Graph

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

23.3.11

Information on bolted wheel connection added

Step 5

	Removing
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Hoist vehicle with lifting platform until wheels are free
2	Pull off wheel covers	Vehicles with wheel covers
3	Unscrew wheel bolts and remove wheel-and-tire assemblies
3	Unscrew wheel bolts and remove wheel-and-tire assemblies		Figure
	Check
4	Check tires for damage and condition, measure tread depth and note down measurements on maintenance sheet		AP40.10-P-4051CW
	Information on tires / rims		AH40.10-P-9411-01A
5	Clean and check wheel bolt connection components, then protect against corrosion	Before mounting a wheel-and-tire assembly all the operation steps listed in the linked description must be conducted carefully. Otherwise the wheel-and-tire assembly may work its way loose from the vehicle and cause damage to people, property or the environment!	AP40.10-P-4050-01A
		Cleaner from package	*BR00.45-Z-1028-04A
		Long-life grease	*BR00.45-Z-1001-06A
	Install
6	Change round wheel-and-tire assemblies on front and rear axles	If necessary, and only on vehicles without mixed tires. Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased.
7	Mount wheel-and-tire assembly and tighten wheel bolts	Observe the tightening sequence (1 to 5) and tightening torque.
8	Lower vehicle
9	Correct tire pressure for all wheel-and-tire assemblies	In the event of tire pressure loss, determine cause and replace valve, tire or rim. On vehicles with tire pressure monitor: Install only valve protection caps made of plastic in order to avoid corrosion.
10	Fit wheel covers	Vehicles with wheel covers

Fig 2: Identifying Socket Wrench (199 589 01 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Cleaner from package	Adolf Wurth GmbH & Co. KG Reinhold-Wurth-Str. 12-17 74653 Kunzelsau-Gaisbach Germany Tel. +49 7940 15-0 Fax +49 7940 15-1000 www.wuerth.de
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51 11
