Apply adhesive material to front glass cover - AR77.21-P-7010-04CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1089-02A | Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |

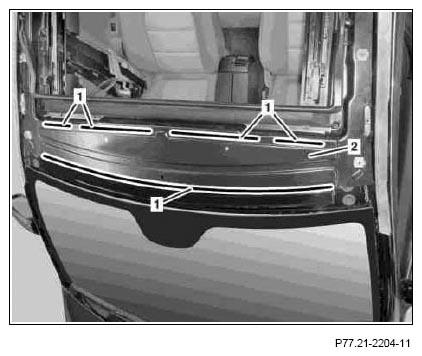

Shown on model 204
Do not touch bonding surface (1) with bare fingers, because the bonding surfaces (1) and adhesive beads must be free of dust, oil, grease, wax, dirt residues and other adhesive constituents. Otherwise the bonding joint can be weakened.
- Guide application nozzle along bonding surfaces (1) on panoramic roof frame (2) and uniformly apply adhesive material in shape of a bead with a height (b) of approx. 14 mm and a width of approx. 8 mm.
Cartridge gun gotis://K_67.0_02.0
Immediately remove contamination caused by adhesive material.
