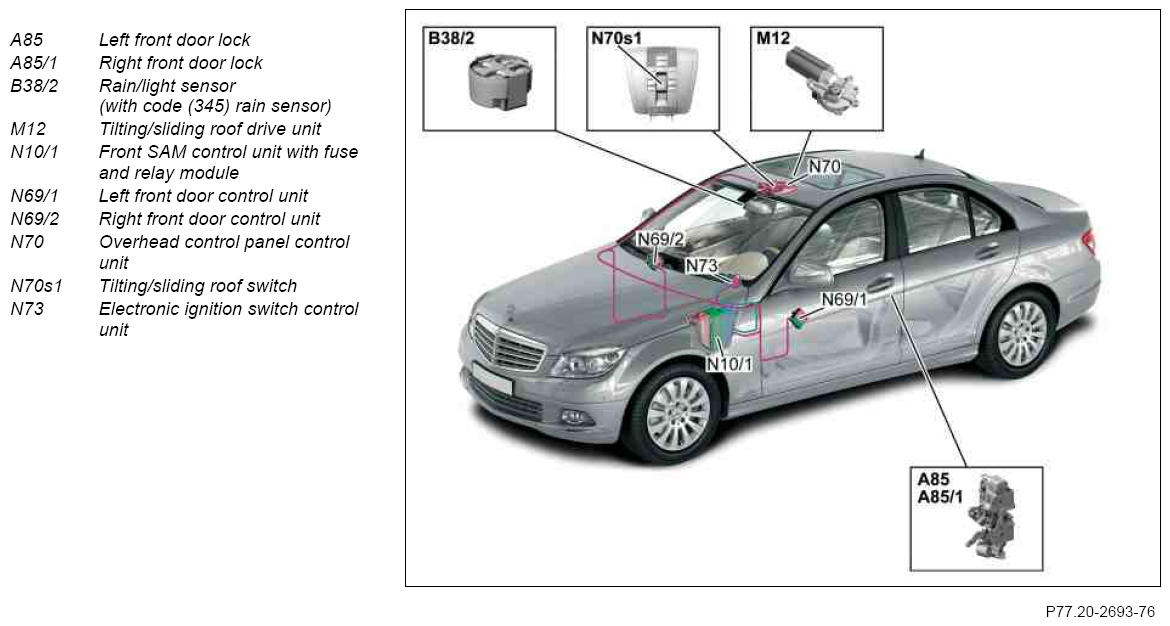

Overview of system components for tilting/sliding roof (SR) - GF77.20-P-9994CE
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 with CODE (414) Power glass tilting/sliding roof as of model year 2009/YoM 08
Shown on model 204.0
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216CE |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE |
| Table of contents for function description of tilting/sliding roof | GF77.20-P-0999CE |
