Component description for the intake manifold pressure sensor - GF07.04-P-6062CY

ENGINE 272.911 in MODEL 204.0 up to Model Year 8

ENGINE 272.921 in MODEL 204.0 /2 up to Model Year 8

ENGINE 272.947 in MODEL 204.0 /2 up to Model Year 8

ENGINE 272.948 in MODEL 204.0 up to Model Year 8

ENGINE 272.961 in MODEL 204.0 up to Model Year 8

ENGINE 272.971 in MODEL 204.0 up to Model Year 8

Location

The pressure sensor is located above on the left cylinder head and connected via a rubber hose with the variable intake manifold.

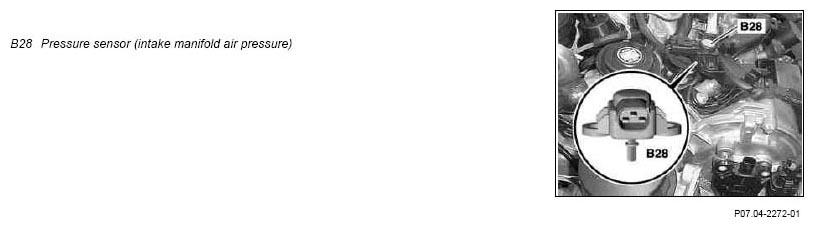

Fig 1: Identifying Intake Manifold Pressure Sensor

Courtesy of MERCEDES-BENZ USA

Task

The pressure sensor detects the absolute pressure in the variable intake manifold (intake manifold air pressure). The intake manifold air pressure serves the ME-SFI [ME] control unit (N3/10) during starting to recognize the air mass and for a running engine to monitor the measured air mass.

Design

Function

The intake manifold air pressure deforms the membrane which acts on a potentiometer. This alters the resistance value of the potentiometer and influences the signal voltage which serves the ME-SFI [ME] control unit as information about the intake manifold air pressure.

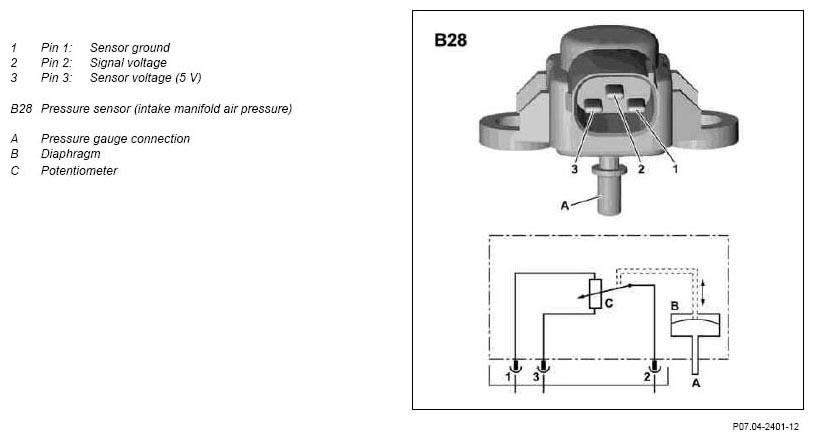

Fig 2: Identifying Intake Manifold Air Pressure Design

Courtesy of MERCEDES-BENZ USA
