Component description for the fuel distribution rail - GF07.61-P-6020CY

ENGINE 272.911 in MODEL 204.0 up to Model Year 8

ENGINE 272.921 in MODEL 204.0 /2 up to Model Year 8

ENGINE 272.947 in MODEL 204.0 /2 up to Model Year 8

ENGINE 272.948 in MODEL 204.0 up to Model Year 8

ENGINE 272.961 in MODEL 204.0 /2 up to Model Year 8

ENGINE 272.971 in MODEL 204.0 up to Model Year 8

Location

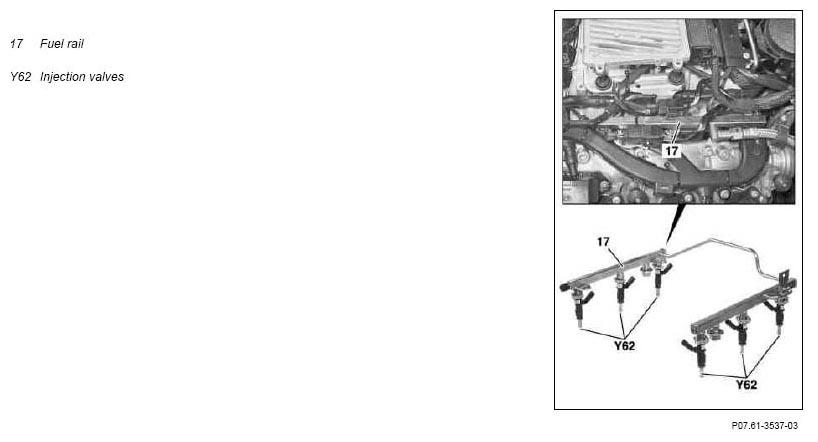

Fig 1: Identifying Fuel Rail And Injection Valves

Courtesy of MERCEDES-BENZ USA

The fuel manifold is located between cylinder heads, on the injection valves.

Task

Injection valves should be supplied with equal amounts of fuel under all operating conditions.
Fuel pressure pulsation damping
Checking and relieving of the fuel pressure for diagnosis or assembly operation

Design

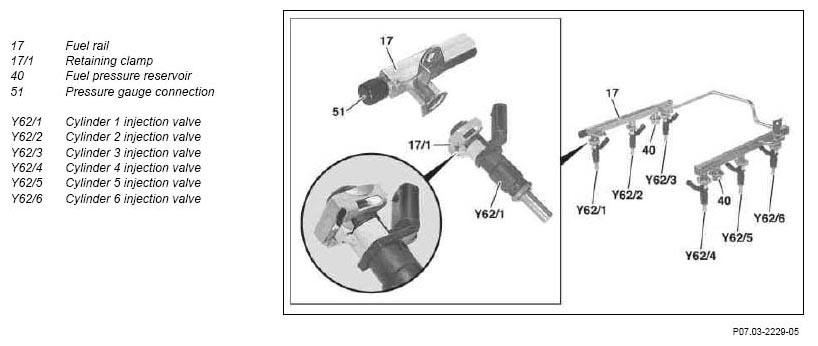

Fig 2: Identifying Design Of Fuel Distribution Rail Components

Courtesy of MERCEDES-BENZ USA

The injection valves are installed in the fuel distribution tube with an O-ring and a retaining clamp.

With code 494 USA version

The sealing ring for the pressure gauge connection is to be replaced after every opening.

Function

The pressure measuring connection with service valve makes it possible to test the fuel pressure for diagnostic purposes and to reduce the fuel pressure during installation work.

The fuel pressure damper reduces fuel pressure pulsation when strongly fluctuating injection quantities.
