Component description for the fuel tank pressure sensor - GF47.30-P-2101CY

MODEL 204.0/2 with ENGINE 272.947 with CODE (494) USA version up to Model Year 8

MODEL 204.0 with ENGINE 272.948 with CODE (494) USA version up to Model Year 8

MODEL 204.0/2 with ENGINE 272.961 with CODE (494) USA version up to Model Year 8

MODEL 204.0 with ENGINE 272.971 with CODE (494) USA version up to Model Year 8

Location

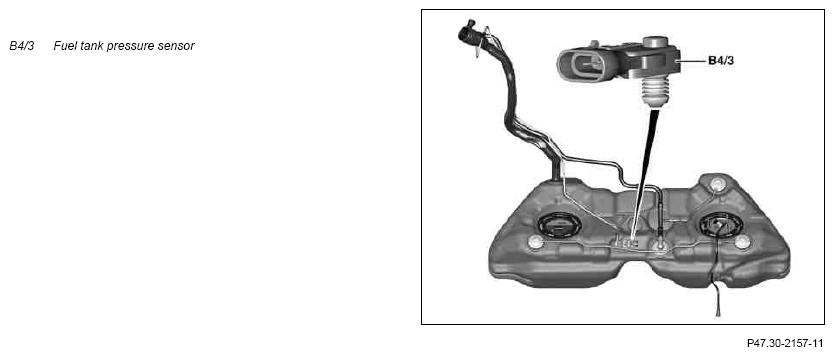

Fig 1: Identifying Fuel Tank Pressure Sensor

Courtesy of MERCEDES-BENZ USA

The pressure sensor is located above, in the middle on the fuel tank.

Task

The pressure sensor detects the pressure inside the fuel tank for leak testing on the regeneration system (leak test).

Function

The pressure sensor detects the internal pressure of the fuel tank and issues a corresponding voltage signal to the ME-SFI [ME] control unit (N3/10).

The voltage supply of 5 V is performed by the ME-SFI [ME] control unit.

The measuring range extends from approx. -50 mbar to approx. +30 mbar.
