Component description for the fuel pressure sensor - GF47.20-P-2020CY

ENGINE 272.911 in MODEL 204.0 up to Model Year 8

ENGINE 272.921 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.947 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.948 in MODEL 204.0 up to Model Year 8

ENGINE 272.961 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.971 in MODEL 204.0 up to Model Year 8

Location

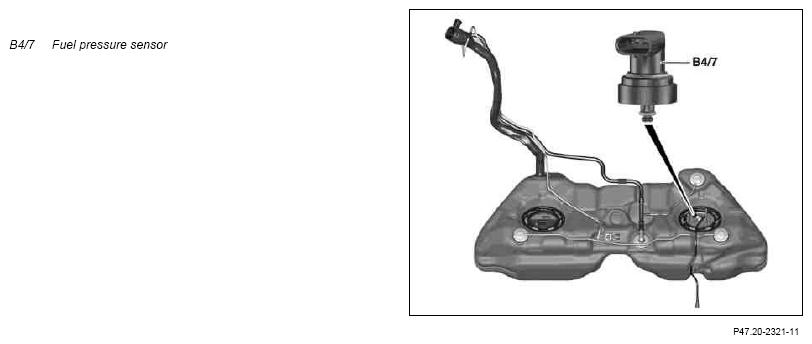

Fig 1: Identifying Fuel Pressure Sensor

Courtesy of MERCEDES-BENZ USA

The pressure sensor is located above on the left closing plate of the fuel tank.

Task

The pressure sensor detects the fuel pressure for the fuel injection system.

The fuel pressure is evaluated by the fuel pump control unit (N118) for actuation of the fuel pump (M3) according to demand.

Information is also transmitted via the current fuel pressure from the fuel pump control unit to the ME-SFI [ME] control unit (N3/10).

Function

The fuel pressure deforms a membrane, which affects a potentiometer. This alters the resistance value of the potentiometer and influences the signal voltage (about 0.3 to 4.8 V) which serves the fuel pump control unit as information about the fuel pressure.

The pressure sensor measuring range lies between 0.5 and 10 bar.
