Windshield washer system pump, component description - GF82.35-P-5001CW
MODEL 204.0 /2 up to Model Year 8
Illustrated on model 204.0

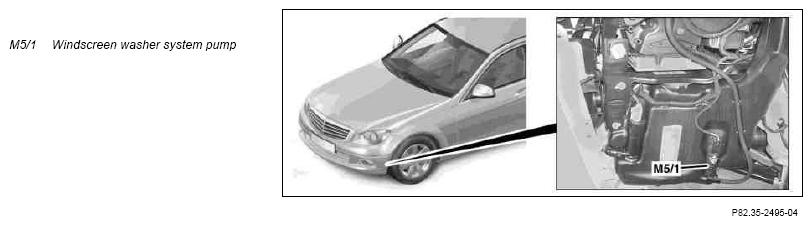

Location
The windshield washer system pump is located on the washer fluid reservoir, which in turn is located underneath the left front lamp unit (E1).
Task
The windshield washer system pump delivers window washer fluid to the spray nozzles of the windshield upon request of the front SAM control unit with fuse and relay module (N10/1).
