Mobile phone system, location of components - GF82.70-P-0007-01CWJ

MODEL 204.0 with CODE (498) Japan version

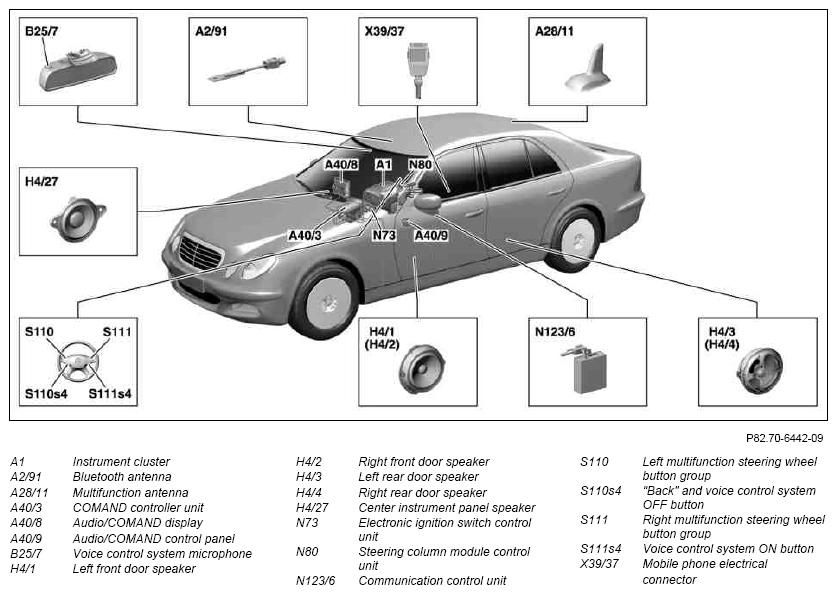

Fig 1: Locating Mobile Phone System Components

G07528387

Courtesy of MERCEDES-BENZ USA
