Wiper system (WSA) block diagram - GF82.30-P-0003-04CW

MODEL 204.0 up to Model Year 8

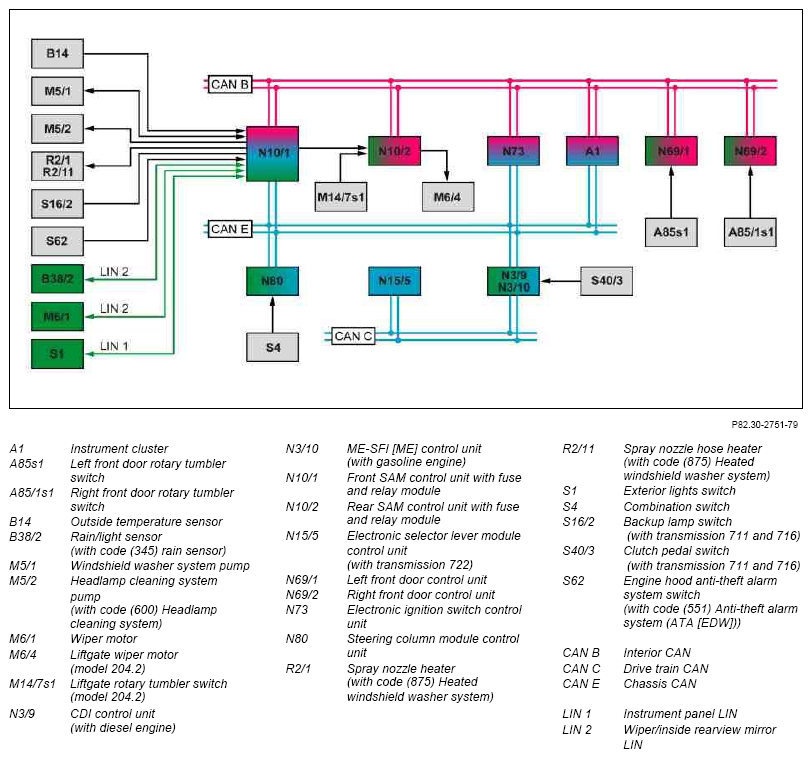

Fig 1: Wiper System (WSA) Block Diagram

G07532058

Courtesy of MERCEDES-BENZ USA
