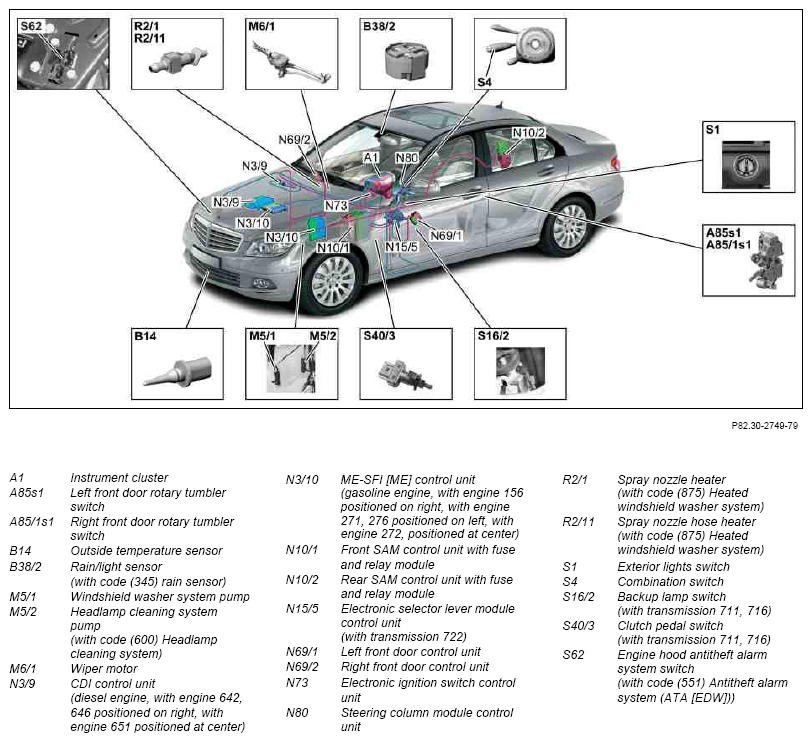

Overview of system components, wiper system (WSA) - GF82.30-P-9997CE
MODEL 204.0 /2 as of model year 2009 /YoM 08
MODEL 204.3/ 9
Model 204.0/3, shown on model 204.0 up to 28.2.11
| Component description for instrument cluster | A1 | GF54.30-P-6000CE | |
| Component description for CDI control unit | N3/9 With engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG | |
| With engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | ||
| On engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | ||
| With engine 651.9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI [ME] control unit | N3/10 With engine 156 in model 204.0/2 |
GF07.61-P-6000MAW | |
| With engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | ||
| With engine 276.9 | GF07.61-P-6000MFW | ||
| With engine 271.9 in model 204.0/2 | GF07.61-P-6000MI | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF07.61-P-6000MIE | ||
| With engine 272.982 in model 204.0 | GF07.61-P-6000MM | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Component description for electronic selector lever module control unit | N15/5 With transmission 722.6 |
GF27.60-P-5163ACW | |
| With transmission 722.9 | GF27.60-P-5163AHW | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CE | |
| Contents, function description of wiper system (WSA) | GF82.30-P-0998CE |
