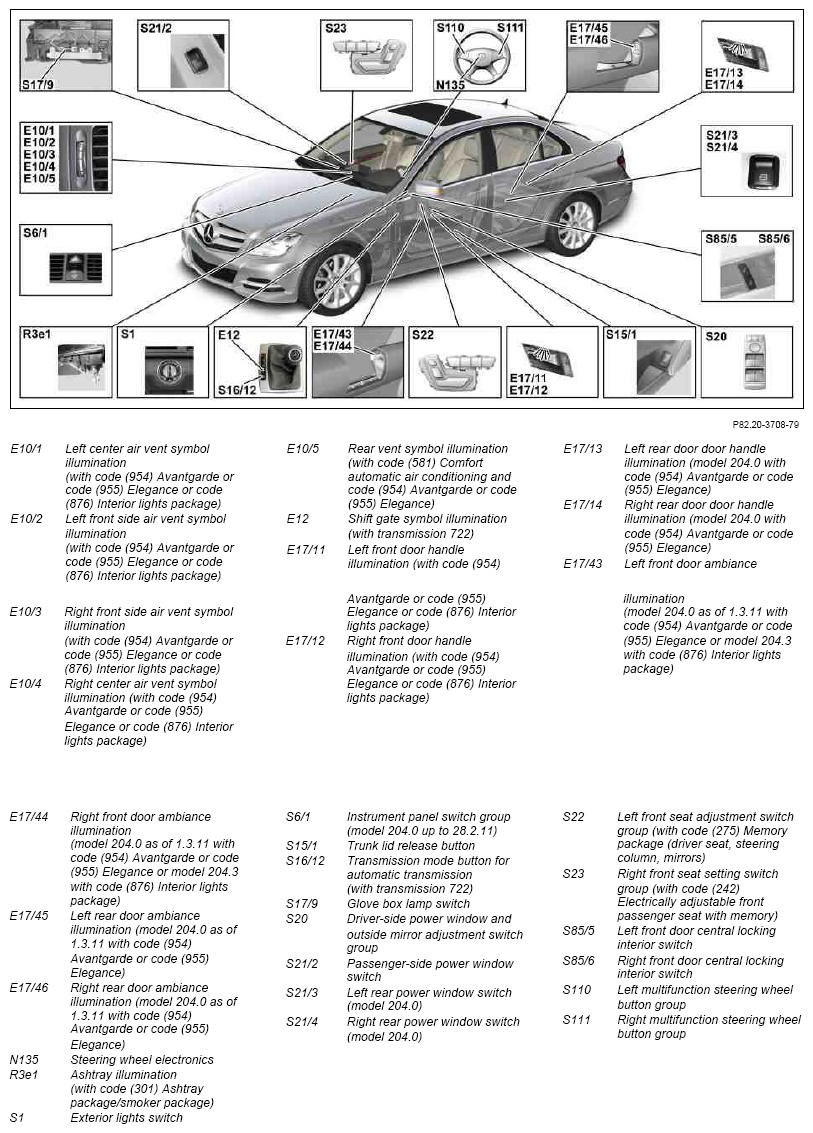

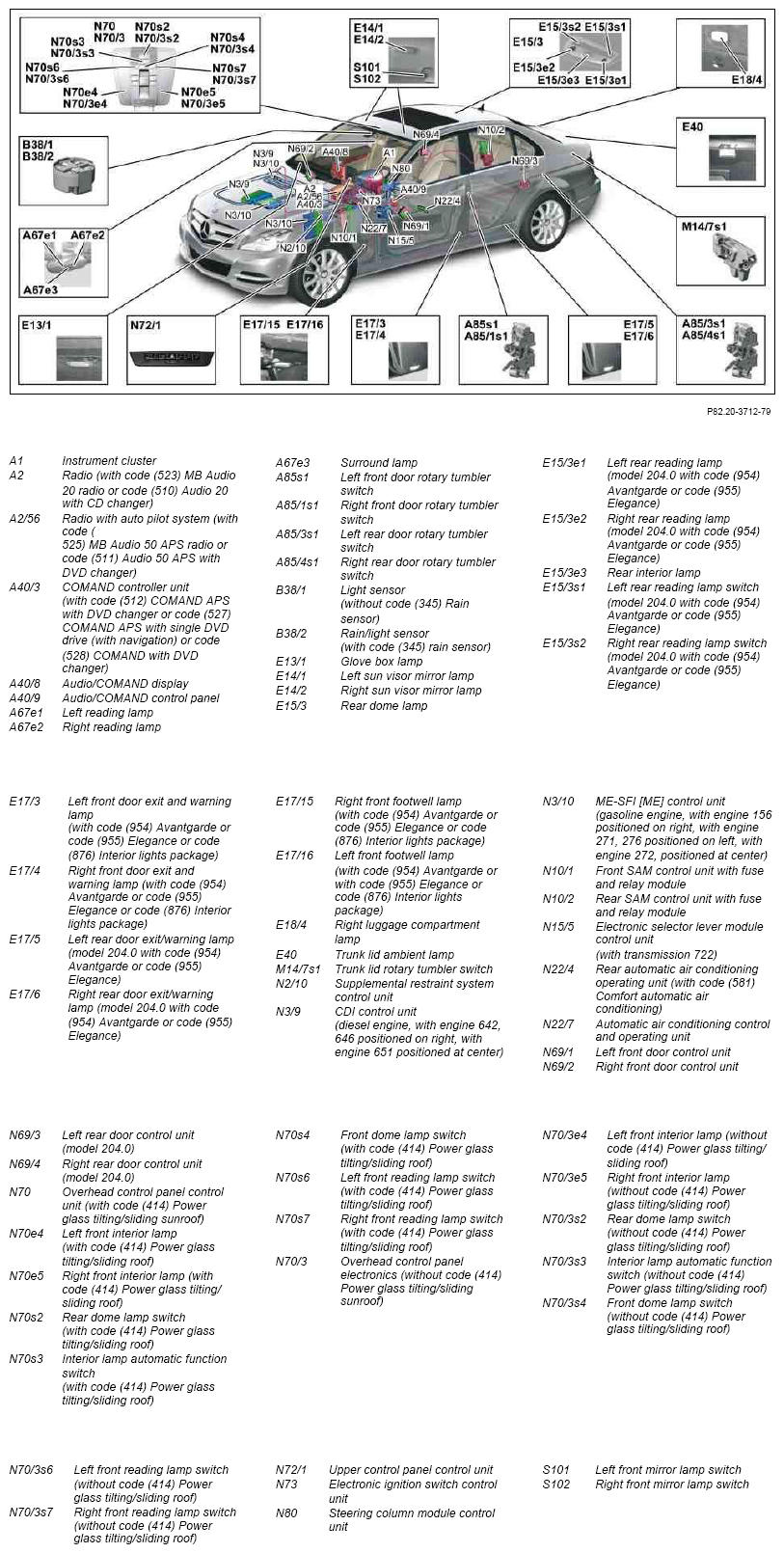

Overview of interior illumination (IBL) system components - GF82.20-P-9997CE
MODEL 204.0/2 as of model year 2009 MODEL 204.3 MODEL 204.9
Model 204.0/3, shown on model 204.0 as of 1.3.11
| Component description for instrument cluster | A1 | GF54.30-P-6000CE | |
| Component description for the radio | A2 With code (523) MB Audio 20 radio without code (494) USA version |
GF82.60-P-3122CE | |
| Model 204.0/2 as of 1.3.11 with code (510) Audio 20 incl. CD changer, Model 204.0 as of 1.3.11 with code (523) MB Audio 20 radio and code (494) USA version, Model 204.3 with code (523) MB Audio 20 radio and code (494) USA version or With code (510) Audio 20 with CD changer |
GF82.60-P-3122CEA | ||
| Model 204.0/2 up to 28.2.11 with code (510) Audio 20 incl. CD changer, Model 204.0 up to 28.2.11 with code (523) MB Audio 20 radio and code (494) USA version, Model 204.9 with code (523) MB Audio 20 radio and code (494) USA version or With code (510) Audio 20 with CD changer |
GF82.60-P-3122CEB | ||
| Component description for radio with auto pilot system | A2/56 Model 204.0/2/9 with code (525) MB Audio 50 APS radio or code (511) Audio 50 APS incl. DVD changer |
GF82.61-P-4112CE | |
| Component description for COMAND controller unit | A40/3 Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and without code (498) Japan version or with code (512) COMAND APS incl. DVD changer, Model 204.0 up to 28.2.11 with code (528) COMAND incl. DVD changer, Model 204.9 with code (527) COMAND APS with single DVD drive (with navigation) without code (498) Japan version or with code (512) COMAND APS incl. DVD changer or with code (528) COMAND incl. DVD changer |
GF82.85-P-3136CE | |
| Model 204.0/2 as of 1.3.11 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer, Model 204.3 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer |
GF82.85-P-3136CEA | ||
| Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and code (498) Japan version, Model 204.9 with code (527) COMAND APS with single DVD drive (with navigation) and with code (498) Japan version | GF82.85-P-3136CEJ | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150CE | |
| Audio/COMAND control panel, component description | A40/9 | GF54.21-P-4501CE | |
| Component description for supplemental restraint system control unit | N2/10 | GF91.60-P-4068CE | |
| Component description for CDI control unit | N3/9 With engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG | |
| With engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | ||
| On engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | ||
| With engine 651.9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI [ME] control unit | N3/10 With engine 156 in model 204.0/2 |
GF07.61-P-6000MAW | |
| With engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | ||
| With engine 271.9 in model 204.0/2 | GF07.61-P-6000MFW | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF07.61-P-6000MI | ||
| With engine 272.982 in model 204.0 | GF07.61-P-6000MIE | ||
| With engine 276.9 | GF07.61-P-6000MM | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Component description for electronic selector lever module control unit | N15/5 On transmission 722.6 in model 204.0/2 |
GF27.60-P-5163ACW | |
| With transmission 722.9 | GF27.60-P-5163AHW | ||
| Component description for automatic air conditioning control and operating unit | N22/7 Without code (581) Comfort automatic air conditioning |
GF83.40-P-3000CEA | |
| With code (581) Comfort automatic air conditioning | GF83.40-P-3000CEB | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE | |
| Component description for rear door control unit | Model 204.0/2/9 N69/3, N69/4 |
GF72.29-P-6021CE | |
| Component description for overhead control panel control unit | N70 With code (414) Electric glass tilting/sliding sunroof |
GF82.20-P-5216CE | |
| Component description for electronic overhead control panel | N70/3 Without code (414) Power glass tilting/sliding roof |
GF82.20-P-5217CE | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CE | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998CE |
