Overview of exterior lights system components - GF82.10-P-9998CE
MODEL 204.0 /2 as of model year 2009 /YoM 08
MODEL 204.3
MODEL 204.9

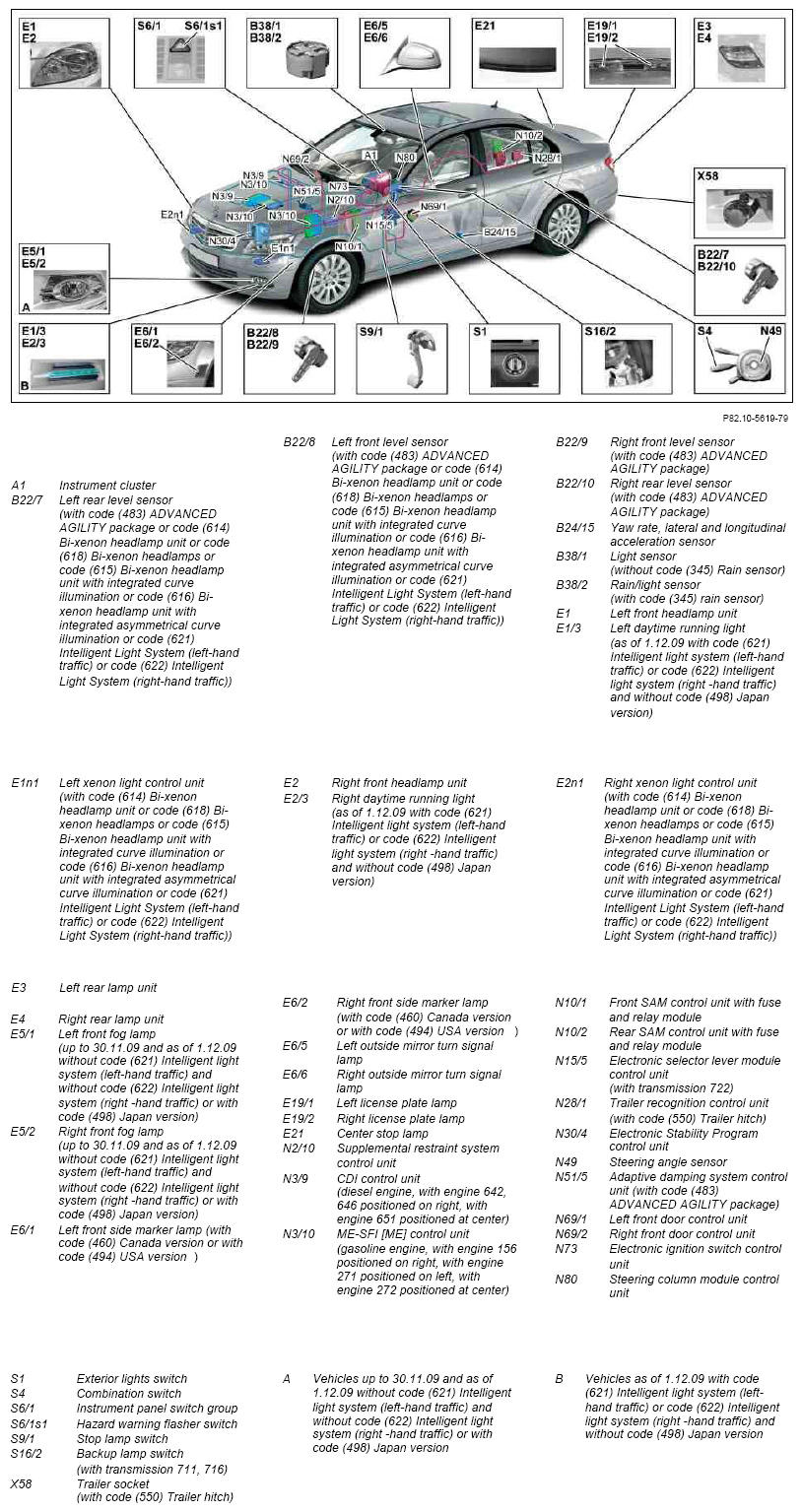

Model 204.0/2 up to 28.2.11, shown on model 204.0

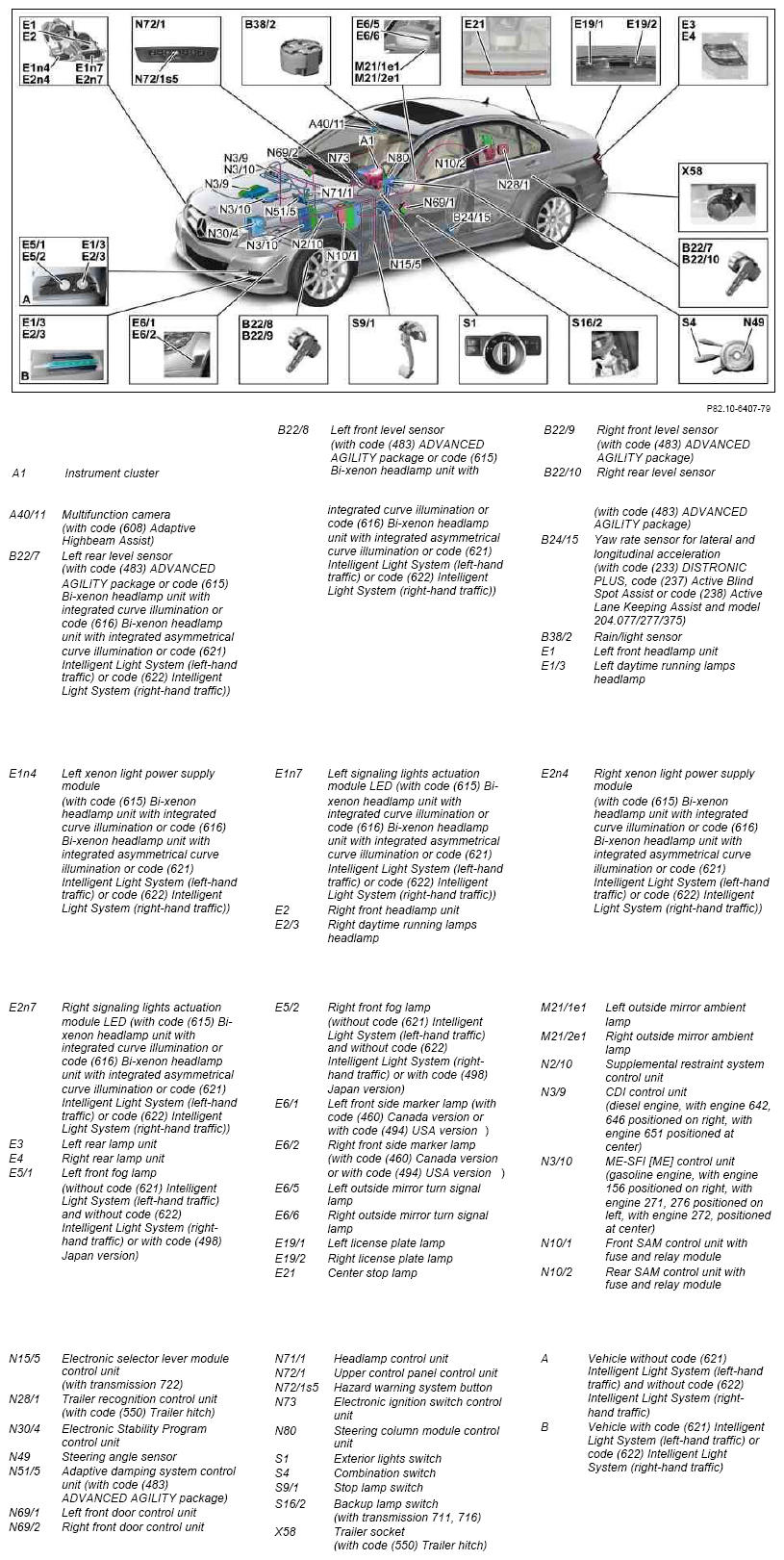

Model 204.0/2 as of 1.3.11, model 204.3, shown on model 204.0

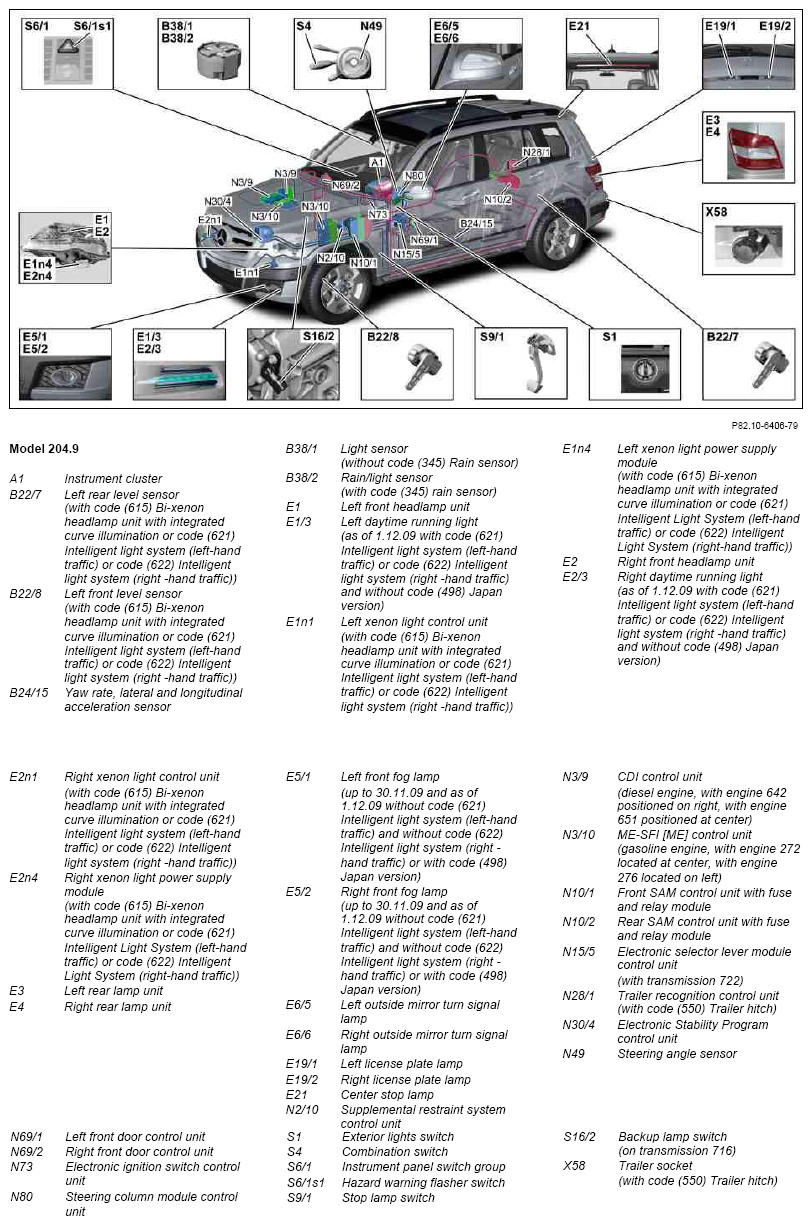

Model 204.9
| Component description for instrument cluster | A1 | GF54.30-P-6000CE | |
| Component description for multifunction camera | A40/11 With code (608) Adaptive Highbeam Assist |
GF54.21-P-3300CE | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810CE | |
| Component description for Xenon light control unit | E1n1, E2n1 In model 204.0/2 up to 28.2.11 with code (614) Bi-xenon headlamp unit or code (618) Bi-xenon headlamps or code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic) |
GF82.10-P-2119CE | |
| With model 204.9 with code (615) Bi-xenon headlamp unit with integrated curve illumination or code (621) Intelligent light system (left-hand traffic) or code (622) Intelligent light system (right-hand traffic) | GF82.10-P-2119GD | ||
| Component description for supplemental restraint system control unit | N2/10 | GF91.60-P-4068CE | |
| Component description for CDI control unit | N3/9 With engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG | |
| With engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | ||
| On engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | ||
| With engine 651.9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI [ME] control unit | N3/10 With engine 156 in model 204.0/2 |
GF07.61-P-6000MAW | |
| With engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | ||
| With engine 271.9 in model 204.0/2 | GF07.61-P-6000MFW | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF07.61-P-6000MI | ||
| With engine 272.982 in model 204.0 | GF07.61-P-6000MIE | ||
| With engine 276.9 | GF07.61-P-6000MM | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Component description for electronic selector lever module control unit | N15/5 On transmission 722.6 in model 204.0/2 |
GF27.60-P-5163ACW | |
| With transmission 722.9 | GF27.60-P-5163AHW | ||
| Component description for trailer recognition control unit | N28/1 With code (550) Trailer hitch |
GF31.19-P-4050CE | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119CE | |
| Component description for adaptive damping system control unit | N51/5 With code (483) ADVANCED AGILITY package |
GF32.32-P-1010CE | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE | |
| Headlamp control unit, component description | N71/1 In model 204.0/2 as of 1.3.11, model 204.3 With code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic) |
||
| Upper control panel control unit, component description | N72/1 In model 204.0/2 as of 1.3.11, model 204.3 |
GF54.21-P-6040CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CE | |
| Table of contents for function description of exterior lights | GF82.10-P-0999CE |
