Interior illumination (IBL), location of components - GF82.20-P-0002-01CW

MODEL 204.0

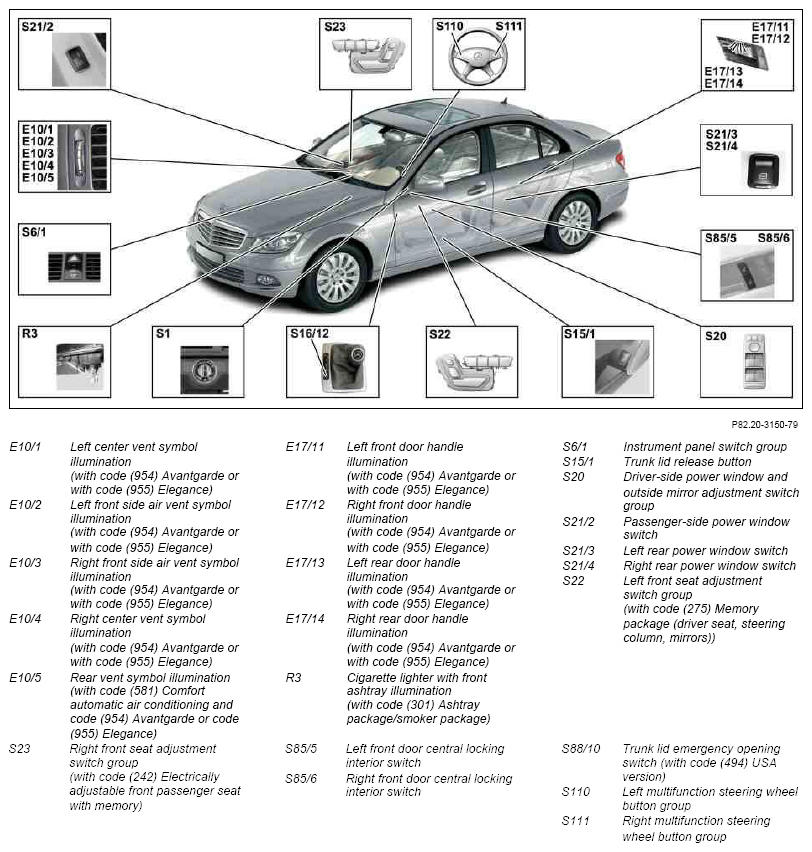

Fig 1: Interior Illumination (IBL) Components Location (1 Of 2)

Courtesy of MERCEDES-BENZ USA

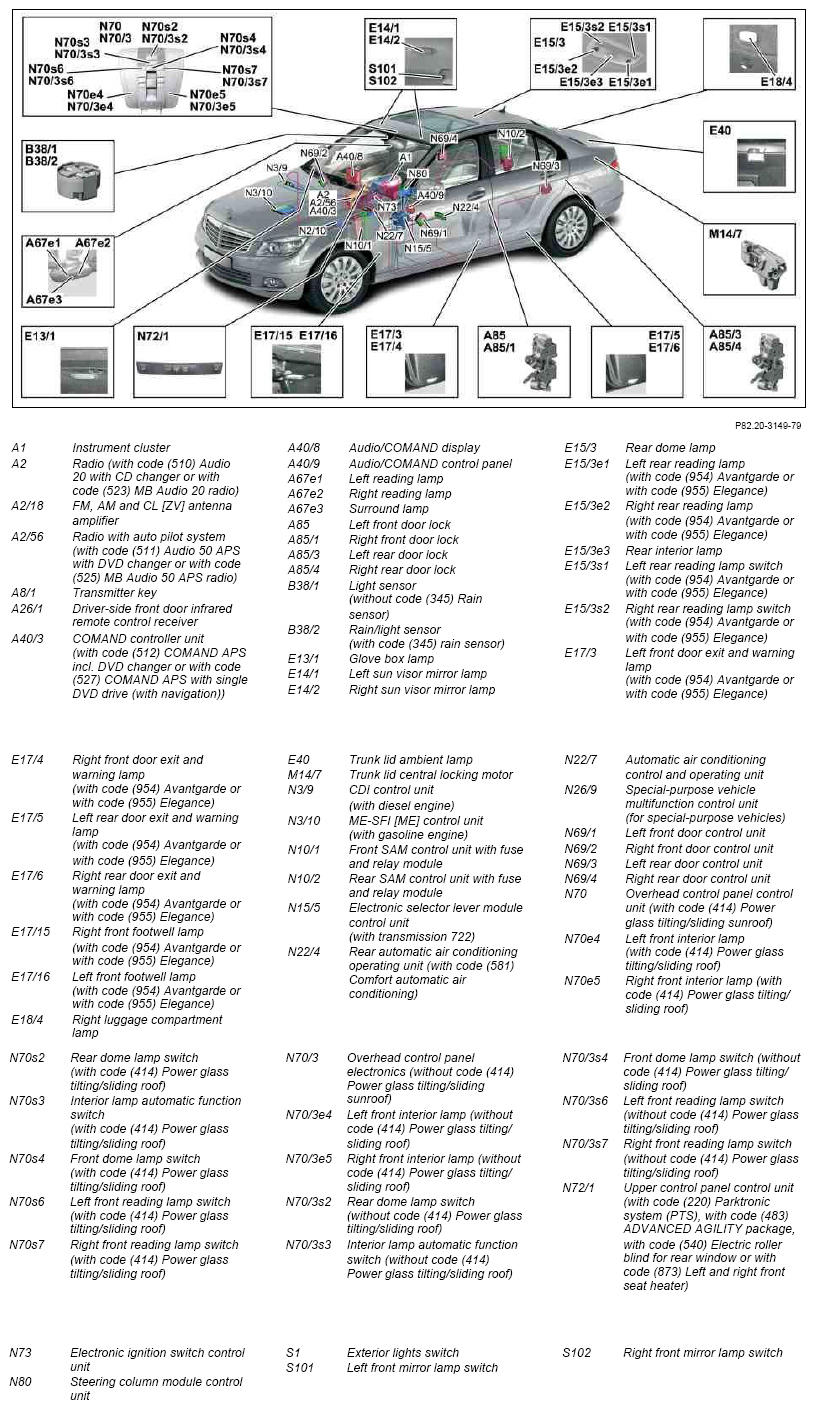

Fig 2: Interior Illumination (IBL) Components Location (2 Of 2)

Courtesy of MERCEDES-BENZ USA
