Headlamp cleaning system (HCS [SRA]) pump, component description - GF82.15-P-2160CW
MODEL 204.0 /2 with CODE (600) Headlamp cleaning system up to Model Year 8
Illustrated on model 204.0

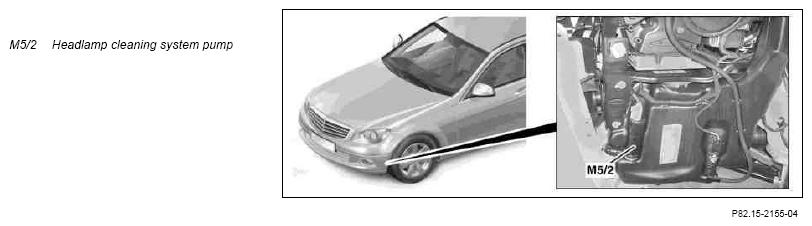

Location
The headlamp cleaning system pump is located on the washer fluid reservoir, which in turn is located underneath the left front lamp unit (E1).
Task
The headlamp cleaning system pump delivers window washer fluid to the telescopic nozzles of the headlamp cleaning system (HCS [SRA]) upon request of the front SAM control unit with fuse and relay module (N10/1).
