Hazard warning flasher switch, component description - GF82.10-P-4108CW
MODEL 204.0 /2 up to Model Year 8
Illustrated on model 204.0

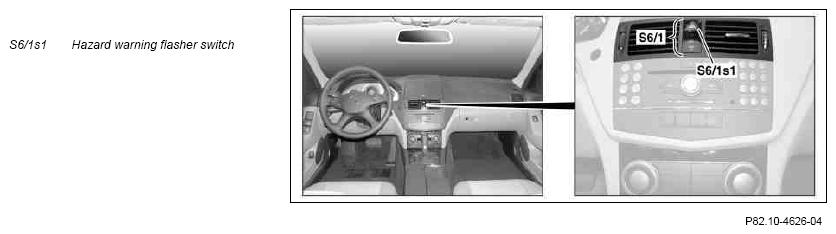

Location
The hazard warning flasher switch is integrated into the instrument panel switch group (S6/1), which is installed between the air vents in the instrument panel.
Tasks
The hazard warning system can be manually activated and deactivated via the hazard warning flasher switch.
It is read in by the front SAM control unit with fuse and relay module (N10/1) via the instrument panel LIN.
