Block diagram of exterior lights - GF82.10-P-0003-03CW

MODEL 204.0 /2 except CODE (614) Bi-xenon headlamp unit except CODE (622) Intelligent Light System (right-hand traffic) up to Model Year 8

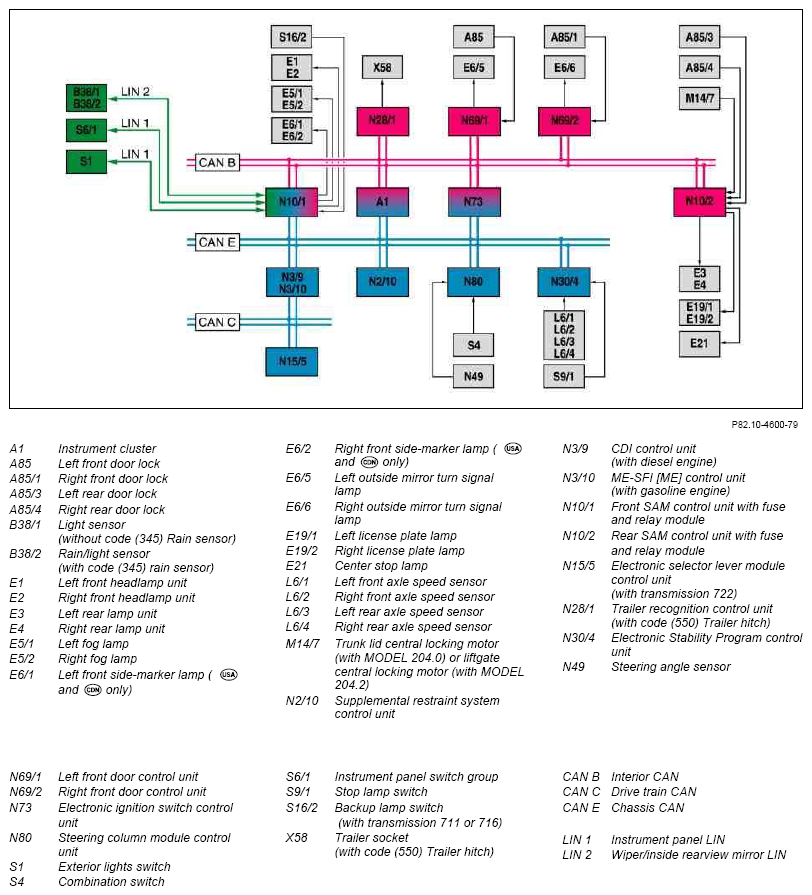

Fig 1: Block Diagram Of Exterior Lights

Courtesy of MERCEDES-BENZ USA
