Overall network (GVN) block diagram - GF00.19-P-0001-03CW

MODEL 204.0 up to Model Year 8

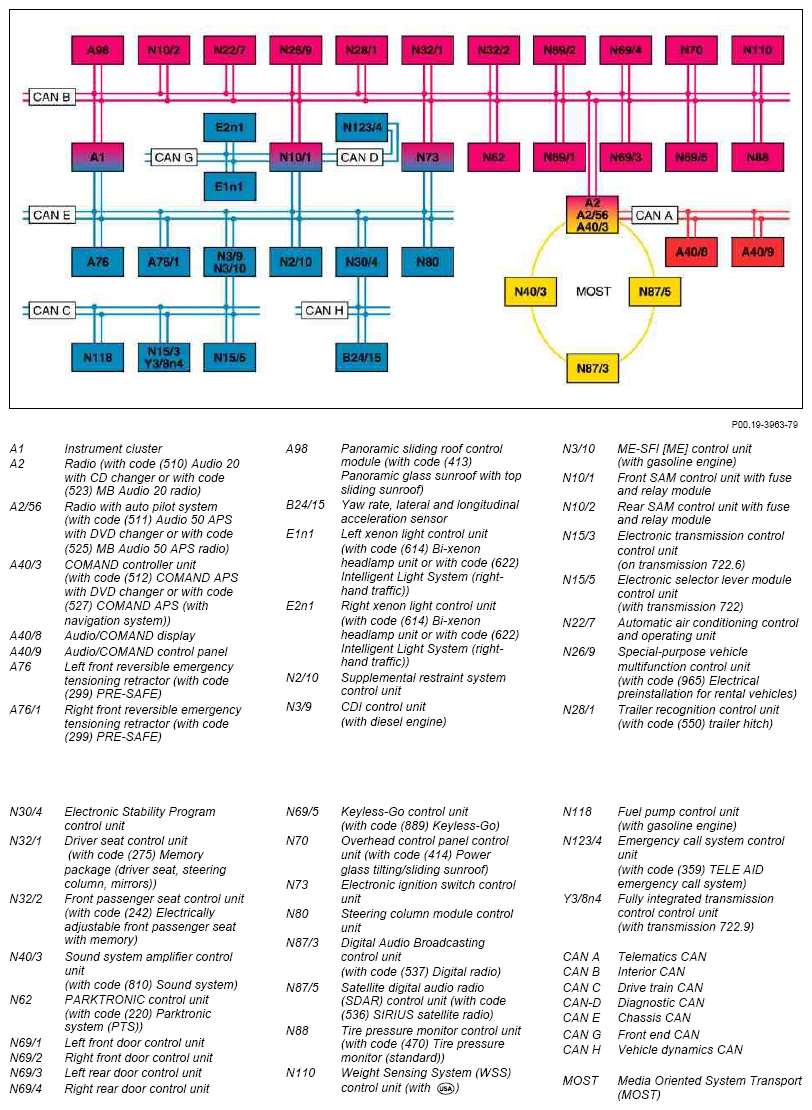

Fig 1: Overall-Work (GVN) Block Diagram

G07529167

Courtesy of MERCEDES-BENZ USA
