Correcting front inclination angle at transmission - AR41.10-P-0086-03CW
| Number | Designation | MODEL 204 |
|---|---|---|
| BA22.10-P-1004-03E | Rear engine mount on engine support | 28 Nm |
| Number | Designation | MODEL 204 |
|---|---|---|
| BA22.10-P-1005-03E | Bolt, rear engine support to frame floor assembly | 70 Nm |
| M10x22 Silver |
55 Nm | |
| M10x24 Black |
50 Nm |
Correct front inclination angle
For inclination angle correction at the rear engine crossmember (34) or at the rear engine mount, mount shop-made shims. A 1 mm thick shim changes the inclination angle by approx. 0.17°.
The bolt length should be increased by 5 mm when using shims with a thickness of >2 mm If a shim with thickness of >5 mm is required, the front and rear engine mounts must be checked for signs of settling or wear and replaced if necessary.
Support transmission.
Remove rear engine crossmember (34).

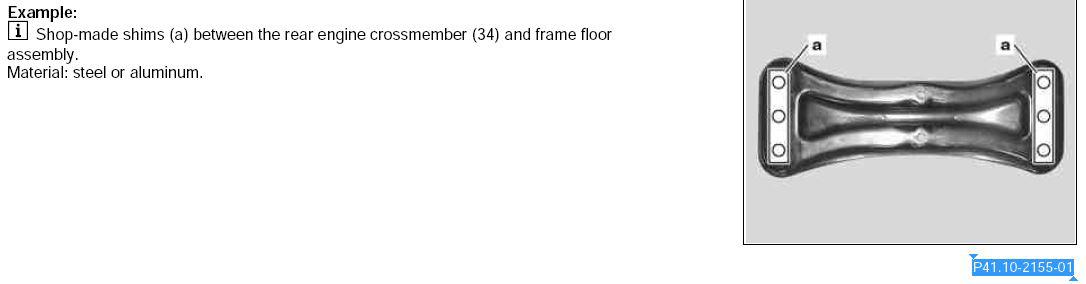

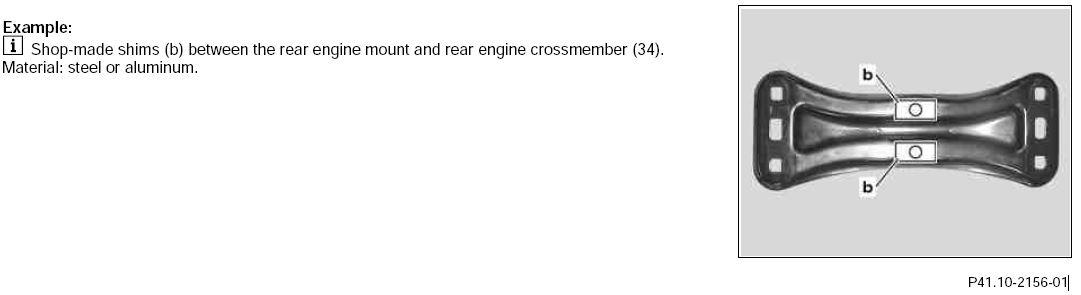

Depending on the correction insert the shop-made shims between the rear engine crossmember (34) and frame floor or between the rear engine mount and the rear engine crossmember (34).
The dimensions for the shims must be taken from the corresponding part.
Install rear engine crossmember. Observe specified tightening torque.
Remove transmission jack and transmission plate.
