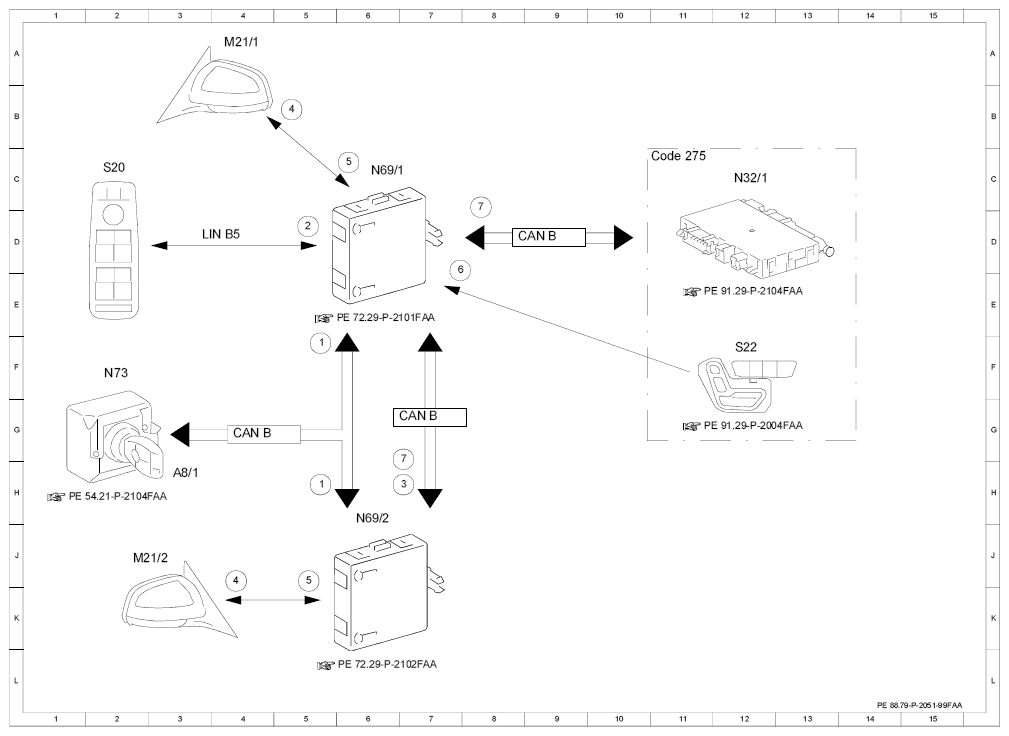

Electrical function schematic for mirror lens adjustment - PE88.79-P-2051-99FAA
MODEL 204 up to model year 08/YoM 07
| Code : | Designation : | Position : |
|---|---|---|
| 1 | Circuit 15, status | 5H |
| 1 | Circuit 15, status | 5F |
| 2 | Driver-side switch group, status | 5D |
| 3 | Outside mirror actuator motor, request | 6H |
| 4 | Outside mirror actuator motor, actuation | 4K |
| 4 | Outside mirror actuator motor, actuation | 5B |
| 5 | Outside mirror actuator motor, signal | 5K |
| 5 | Outside mirror actuator motor, signal | 6C |
| 6 | Seat adjustment switch group, status | 7E |
| 7 | Store/call up outside mirror position, request | 6H |
| 7 | Store/call up outside mirror position, request | 8D |
| A8/1 | Transmitter key | 3H |
| CANB | Interior CAN | 4G |
| CANB | Interior CAN | 6G |
| CANB | Interior CAN | 8D |
| Code 275 | Memory function (driver seat, steering column, outside mirror) | 10C |
| LINB5 | Left door LIN | 3D |
| M21/1 | Left outside mirror | 4A |
| M21/2 | Right outside mirror | 2J |
| N32/1 | Driver seat control unit | 12C |
| N69/1 | Left front door control unit | 6C |
| N69/2 | Right front door control unit | 6J |
| N73 | Electronic ignition switch control unit | 2F |
| S20 | Driver-side power window and outside mirror adjustment switch group | 2C |
| S22 | Left front seat adjustment switch group | 12F |
