Electric outside mirror, block diagram - GF88.79-P-0003-02CW

MODEL 204.0 /2 up to Model Year 8

REFER TO BASIC KNOWLEDGE

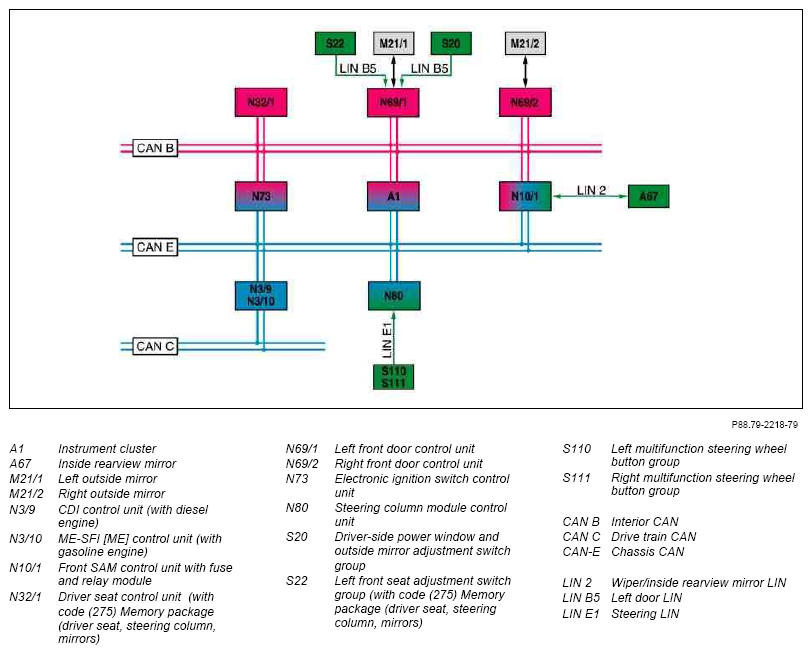

Fig 1: Identifying Electric Outside Mirror Block Diagram
G07528091Courtesy of MERCEDES-BENZ USA
