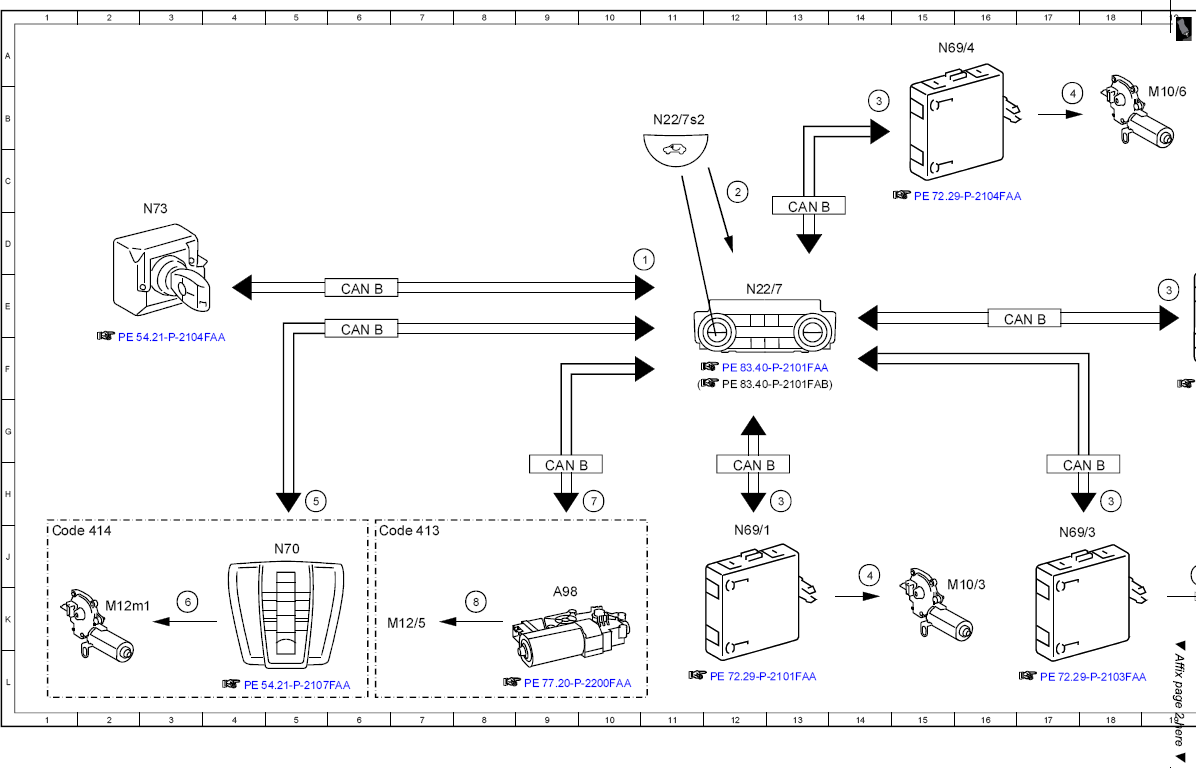

| 1 |
Circuit 15, status |
11D |
| 2 |
Comfort closing/opening, request |
12C |
| 3 |
Power window motor, request |
13H |
| 3 |
Power window motor, request |
18H |
| 3 |
Power window motor, request |
19E |
| 3 |
Power window motor, request |
14B |
| 4 |
Power window motor, actuation |
14J |
| 4 |
Power window motor, actuation |
19J |
| 4 |
Power window motor, actuation |
17B |
| 4 |
Power window motor, actuation |
22E |
| 5 |
Tilting/sliding roof motor, request |
5H |
| 6 |
Tilting/sliding roof motor, actuation |
3K |
| 7 |
Panoramic sliding sunroof motor, request |
10H |
| 8 |
Panoramic sliding roof roller sun blind drive unit, actuation |
8K |
| A98 |
Panoramic sliding roof control module |
9K |
| CAN B |
Interior CAN |
6E |
| CAN B |
Interior CAN |
6E |
| CAN B |
Interior CAN |
9H |
| CAN B |
Interior CAN |
12H |
| CAN B |
Interior CAN |
17H |
| CAN B |
Interior CAN |
13C |
| Code 413 |
Panoramic sliding sunroof |
7J |
| Code 414 |
Electric glass tilting/sliding roof |
2J |
| M10/3 |
Left front door power window motor |
16K |
| M10/4 |
Right front door power window motor |
23E |
| M10/5 |
Left rear door power window motor |
21J |
| M10/6 |
Right rear door power window motor |
19B |
| M12/5 |
Panoramic sliding roof roller sun blind drive unit |
7K |
| M12m1 |
Tilting/sliding roof motor |
2K |
| N22/7 |
Automatic air conditioning control and operating unit |
12E |
| N22/7s2 |
Air recirculation mode button |
11B |
| N69/1 |
Left front door control unit |
12J |

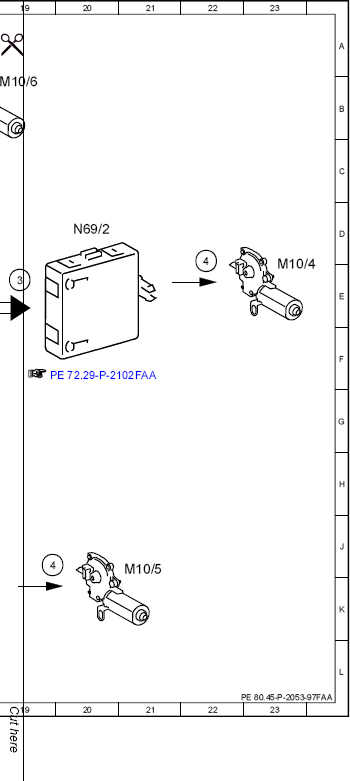

| N69/2 |
Right front door control unit |
20D |
| N69/3 |
Left rear door control unit |
17J |
| N69/4 |
Right rear door control unit |
15A |
| N70 |
Overhead control panel control unit |
5J |
| N73 |
Electronic ignition switch control unit |
3D |
