Replace air cleaner element (engine 113) - AP09.10-P-0980VT

ENGINE 113.989 in MODEL 171.473

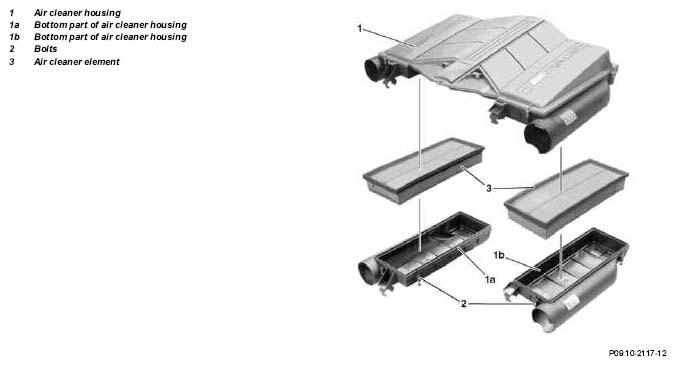

Fig 1: Identifying Air Cleaner Element Components

Courtesy of MERCEDES-BENZ USA

	Remove/install and replacing
1	Remove air cleaner housing (1).	In order to avoid scratches and damage, the air cleaner housing (1) must be put down on a padded base.
	Remove/install air cleaner housing		-
2	Slacken screws (2)	SCREWS (2) will remain in the bottom part (1a) as well as bottom part (1b) of the air cleaner housing.
3	Detach the bottom part (1a) as well as the bottom part (1b) of the air cleaner housing from the air cleaner housing (1)
4	Take out air cartridge (3)
	Cleaning
5	Clean the bottom part (1a) and bottom part (1b) of the air cleaner housing, and the air cleaner housing (1) from the inside	LU cleaner	*BR00.45-Z-1028-04A
6	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	LU cleaner	Adolf Wurth GmbH & Co. KG
