Removing and installing parking brake indicator switch - AR42.20-P-0501V

MODEL 171.4

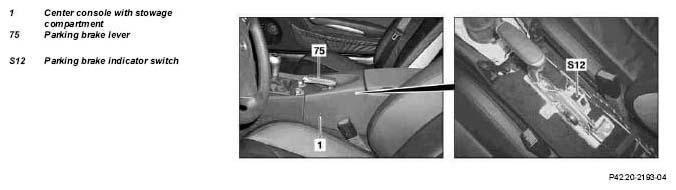

Fig 1: Identifying Parking Brake Indicator Switch Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Turn key in electronic ignition switch control unit to position "0"
2	Remove center console with stowage compartment (1)	Installation:  Check function of parking brake indicator switch (S12) before installation of center console with stowage compartment (1).
3	Pull parking brake lever (75)
4	Remove parking brake indicator switch (S12) from bracket on parking brake lever (75)
5	Disconnect electrical connector from parking brake indicator switch (S12)
6	Install in the reverse order
