Remove/install rear brake control cable - AR42.20-P-0525V
MODELS 171.442 /454 /456 /473
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | - | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Release parking brake | ||
| 2 | Hoist vehicle with lifting platform until wheels are free | AR00.60-P-1000V | |
| 3 | Remove rear wheels. | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050V | ||
| 4 | Remove brake disks on rear axle | Model 171.473 | - |
| Model 171.442 /454 /456 | AR42.10-P-0220V | ||
| 5 | Remove parking brake shoes | AR42.20-P-0530V | |

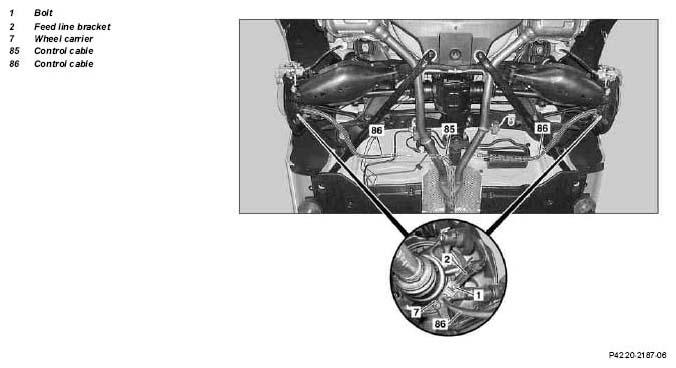

| 6 | Unclip the rear parking brake cable (86) from the front parking brake cable (85) and from the brackets on the rear axle carrier and underbody | AR42.20-P-0520-03VH | |
| Figure | |||
| 7 | Unscrew bolt (1) and pull the rear parking brake cable (86) out of the wheel carrier (7) | ||
| *BA42.20-P-1002-01A | |||
| 8 | Install in the reverse order |
PARKING BRAKE
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA42.20-P-1002-01A | Self-locking bolt, brake cable at rear wheel carrier | Nm | 20 |
