Remove/install left or right rear axle speed sensor - AR42.40-P-0820V
MODELS 171.442 /454 /456 /473
Shown on model 171.442
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | - | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Turn key in ignition lock (electronic ignition switch control unit) to position "0" | ||
| 2 | Hoist vehicle with lifting platform until wheels are free | AR00.60-P-1000V | |
| 3 | Remove rear wheel | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050V | ||
| 4 | Disconnect the electrical feed line from the left rear RPM sensor (L6/3) or right rear RPM sensor (L6/4). | ||
| 5 | Unclip the electrical feed line from the left rear RPM sensor (L6/3) or right rear RPM sensor (L6/4) from the feed line bracket (1) | ||

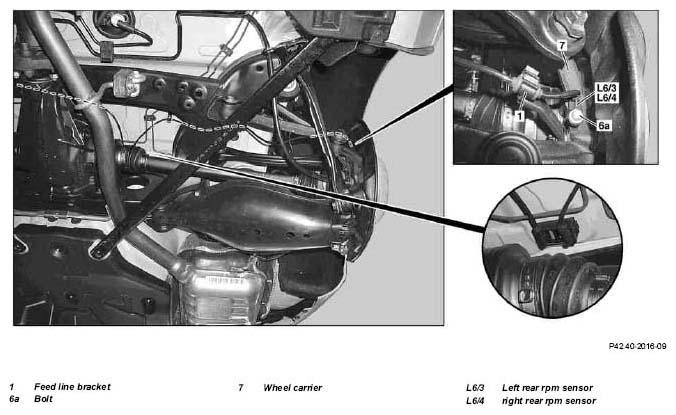

| 6 | Unscrew bolt (6a) | *BA42.30-P-1001-02A | |
| 7 | Pull the left rear RPM sensor (L6/3) or right rear RPM sensor (L6/4) out of the wheel carrier (7) | ||
| 8 | Install in the reverse order | ||
| 9 | Read out fault memory | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
REAR AXLE RPM SENSOR
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA42.30-P-1001-02A | Self-locking bolt of rear axle RPM sensor to wheel carrier | Nm | 8 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
