Remove/install ESP brake pressure sensor - AR42.45-P-0816V
MODELS 171.442 /454 /456 /473
| Remove/install | |||
|---|---|---|---|
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | - | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | - | |
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000V | |

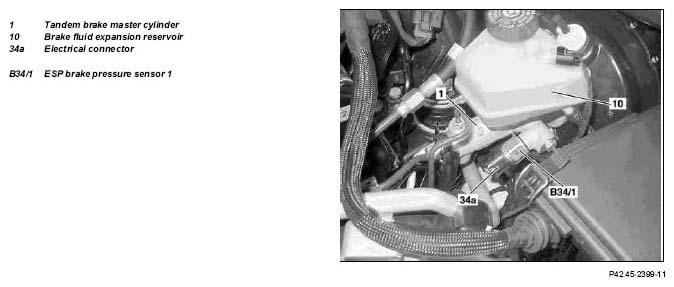

| 2 | Suction off brake fluid from the brake fluid reservoir (10) | ||
| 3 | Disconnect electrical connector (34a) from ESP brake pressure sensor 1 (B34/1) | ||
| 4 | Detach ESP brake pressure sensor 1 (B34/1) from tandem master brake cylinder (1) | ||
| *BA42.45-P-1007-01B | |||
| 5 | Install in the reverse order | ||
| 6 | Bleed brake system | AR42.10-P-0010V | |
| *BF42.10-P-1001-01A | |||
| 7 | Check fluid level in brake fluid reservoir (10) and correct if necessary | ||
| Brake system - inspect fluid level | AP42.10-P-4210V | ||
| 8 | Read out fault memory | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| Check | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near engine | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
- | |
| 9 | Check brake system for leaks | - |
ELECTRONIC STABILITY PROGRAM (ESP)
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA42.45-P-1007-01B | Brake pressure sensor to master brake cylinder | Nm | 25 |
BRAKE FLUID
| Number | Designation | Model | ||
|---|---|---|---|---|
| BF42.10-P-1001-01A | Brake fluid | Filling capacity | Liters | ≈ 0.45...0.6 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | |||
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
