Bleed brake system - AR42.10-P-0010V: Notes
MODEL 171.442 /454 /456 /473
MODIFICATION NOTES
| Bleed screw to central clutch operator | *BA25.20-P-1001-01B |
| Bleeding | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | - | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on externally invisible brake fluid loss | AH42.10-P-9406-02V | ||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | - | |
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000V | |
| 2 | Connect filling and bleeding device | Bleeding pressure must be 2 bar. |
|
Brake fluid changer |
*BF42.10-P-1001-01A | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | - | |
| 3 | Raise vehicle | AR00.60-P-1000V | |

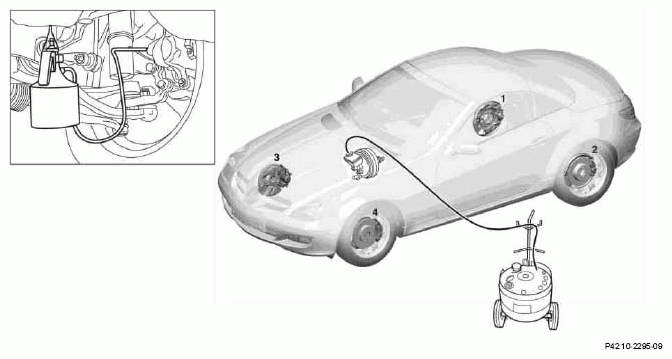

| 4 | Carrying out bleeding operation | AR42.10-P-0010-02V | |
| *BA42.10-P-1002-10P | |||
| *BA42.10-P-1002-12P | |||
| *BA25.20-P-1001-01B | |||
| 5 | Detach filling/bleeding device | ||
| Checking | |||
| 6 | Check fluid level in brake fluid expansion reservoir and correct if necessary | *BF42.10-P-1001-01A | |
| Brake system - inspect fluid level | AP42.10-P-4210V | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
- | |
| 7 | Check brake system for leaks | - |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA42.10-P-1002-10P | Bleed screw to brake caliper | Nm | 7 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 171 except 171.473 | Model 171.473 | |
|---|---|---|---|---|
| BA42.10-P-1002-12P | Bleed screw to brake caliper | Nm | 7 | 7 |
CLUTCH ACTUATION
| Number | Designation | Transmission 716.6 | |
|---|---|---|---|
| BA25.20-P-1001-01B | Bleed screw to central clutch operator | Nm | 9 |
BRAKE FLUID
| Number | Designation | Model 171 | ||
|---|---|---|---|---|
| BF42.10-P-1001-01A | Brake fluid | Filling capacity | Liters | ≈0.45 to 0.6 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | |||
