Steering angle sensor, component description - GF42.45-P-5107RC
MODEL 171.4 as of model year 09 /YoM 08 model refinement package

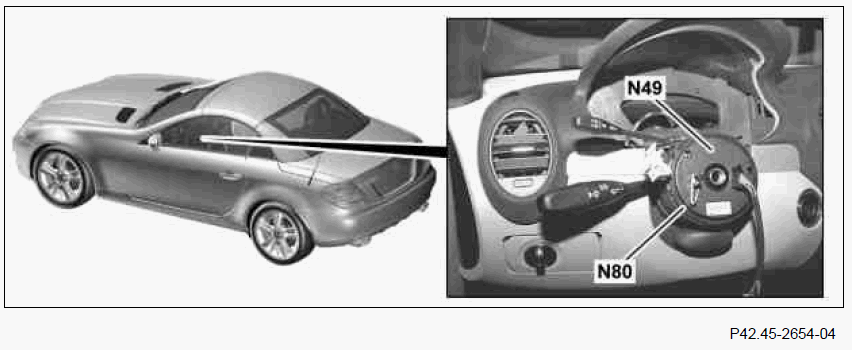

N49 Steering angle sensor
Location The steering angle sensor is integrated in the steering column tube module (N80).
Task The steering angle sensor records the current position of the steering wheel and generates an electrical voltage signal proportional to the angle of steering turn. The signals from the steering angle sensor are read in by the steering column tube module.
