Electronic stability program (ESP), location of components - GF42.45-P-0001-07RC

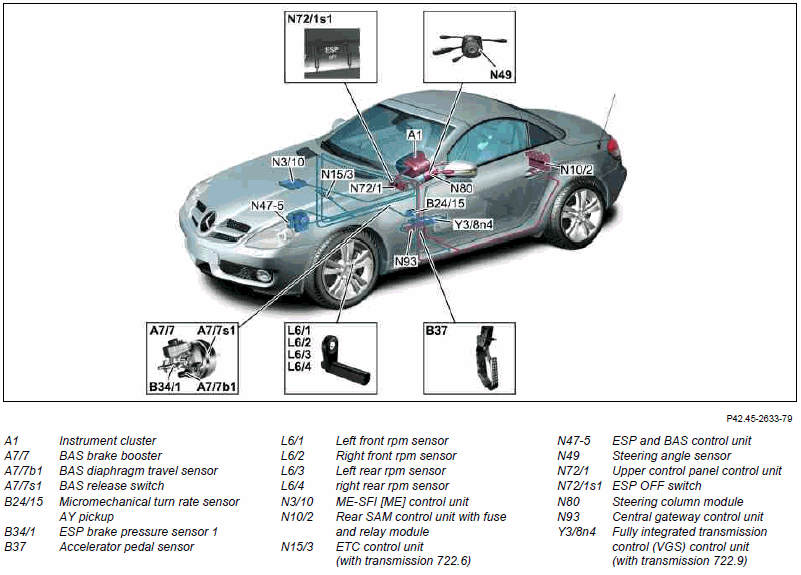

Fig 1: Electronic Stability Program (ESP) Component Locations

G00543647

Courtesy of MERCEDES-BENZ USA
