Electronic Stability Program (ESP) block diagram - GF42.45-P-0001-06RC

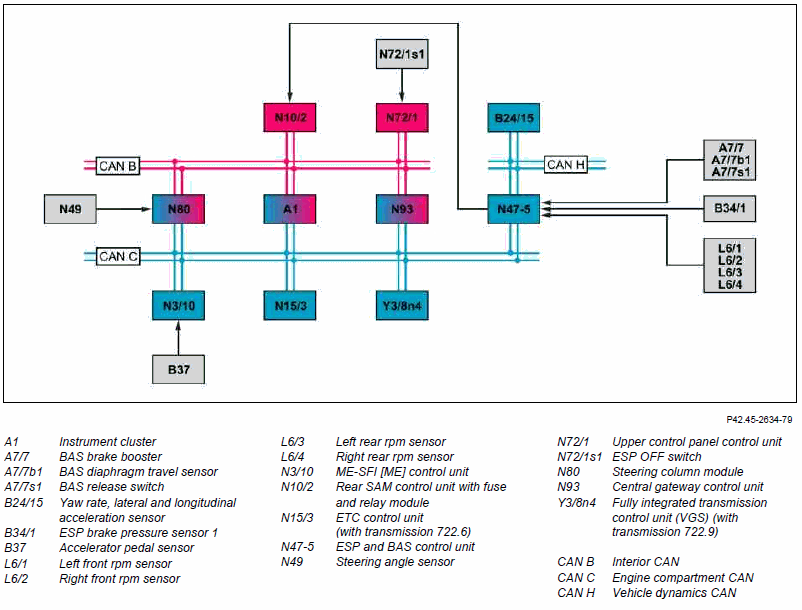

Fig 1: Electronic Stability Program (ESP) Block Diagram

G00543648

Courtesy of MERCEDES-BENZ USA
