Steering angle sensor, location/task - GF42.45-P-4602SK
MODEL 171.4

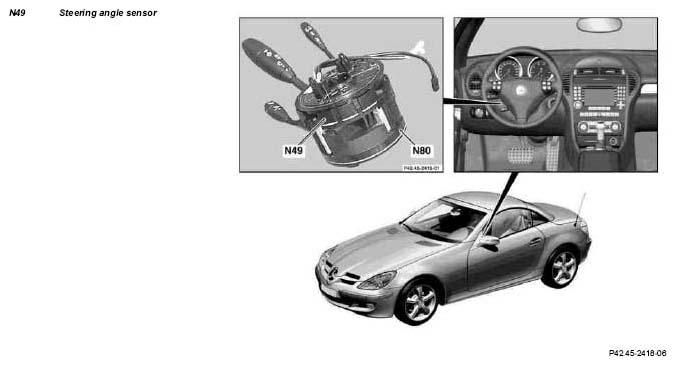

| Steering angle sensor, location | The steering angle sensor (N49) is located in the interior on the steering column behind the steering wheel. |
| Steering angle sensor, task | The steering angle sensor (N49) detects the position of the steering wheel and makes available to the steering column module (N80) an electrical voltage signal proportional to the steering lock angle. |
