Electronic stability program (ESP), location of electrical components - GF42.45-P-0001-03SK

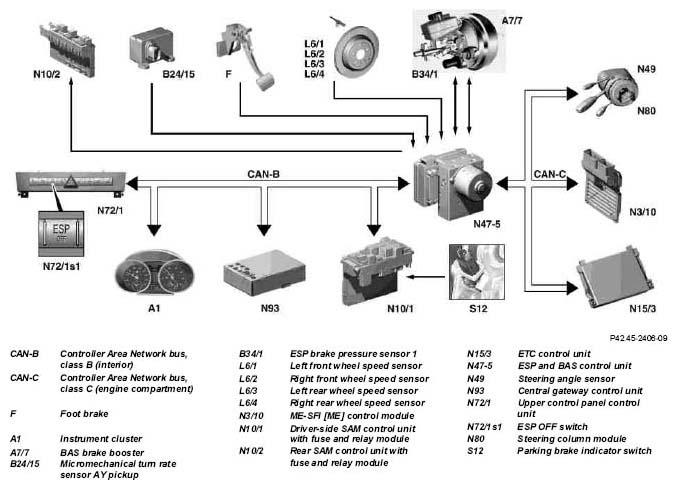

Fig 1: Identifying Electronic Stability Program (ESP) - Location Of Electrical Components
G05027585Courtesy of MERCEDES-BENZ USA
