Completing steps for vehicle handover for ASSYST PLUS - AR00.20-P-0005SK

MODEL 171.4

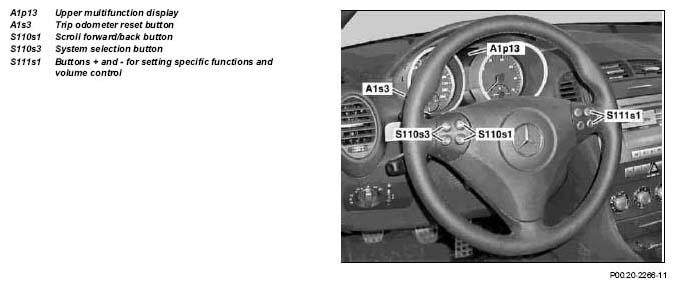

Fig 1: Identifying Multifunction Display, Trip Odometer Reset Button And System Selection Button

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1	Turn transmitter key in electronic ignition switch (EIS) control unit to position "1"
2	Press system selection button (S110s3) repeatedly until the basic display (mileage and temperature display) appears in the upper multifunction display (A1p13)
3	Briefly press trip odometer reset button (A1s3) 3 times	An acoustic alarm is heard and the voltage display appears in the upper multifunction display (A1p13).
4	Press lower scroll forward/back button (S110s1)	The "service menu" appears in the upper multifunction display (A1p13).
5	Press buttons + and -, setting of specific functions and volume control (S111s1) repeatedly and select "Confirmation" menu item
6	Press lower system selection button (S110s3) to confirm.	"Confirmation" appears in the upper multifunction display (A1p13) and the "Overall service" menu item is highlighted.
7	Press buttons + and -, setting of specific functions and volume control (S111s1) repeatedly and select the "Vehicle handover" menu item	The "Vehicle handover" menu item is highlighted. This menu item is no longer displayed once the "Veh. handover" menu item has been activated.
8	Press lower system selection button (S110s3) to confirm.	The message "Veh. handover confirmed" message appears in the upper multifunction display (A1p13).
9	Press the upper system selection button (S110s3) repeatedly until the basic display appears in the upper multifunction display (A1p13).
10	Turn transmitter key in electronic ignition switch (EIS) control unit to position "0"
