Reset service indicator - AP00.20-P-0042V
MODEL 171
| Step | Adjust | Additional Information |
|---|---|---|
| 1 | Close trunk lid, engine hood and doors | Vehicles with code (491) USA version or code (494) USA version |
| 2 | Turn key in electronic ignition switch control unit to position "1" | |

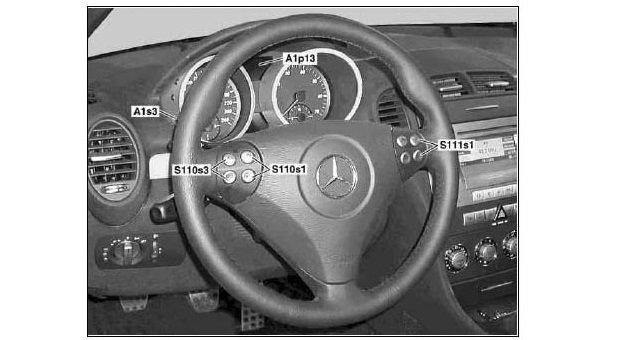

| 3 | Press system selection button (S110s3) repeatedly until the basic display (mileage reading or temperature display) is shown in the top of the multifunction display (A1p13) | |
| 4 | Briefly press the trip odometer reset button (A1s3) 3 times | |
| 5 | Press lower scroll forward/back button (S110s1) | |
| 6 | Press the + and - buttons, setting of specific functions and volume control (S111s1) repeatedly, and select "Confirmation" menu item | |
| 7 | Press lower system selection button (S110s3) to confirm | |
| 8 | Press lower system selection button (S110s3) to confirm | |
| 9 | Press upper system selection button (S110s3) repeatedly until the "Service menu" is shown in the top of the multifunction display (A1p13). | |
| 10 | Using the + and - buttons, setting of specific functions and volume control (S111s1) select the menu item "Special work" | |
| 11 | Press lower system selection button (S110s3) to confirm | |
| 12 | Using the + and - buttons, setting of specific functions and volume control (S111s1) select the menu item "Service 3" | |
| 13 | Press lower system selection button (S110s3) to confirm | |
| 14 | Select the engine oil grade used by pressing the + and - buttons, setting of specific functions and volume control (S111s1) | |
| 15 | Press lower system selection button (S110s3) to confirm | |
| 16 | Press the system selection button (S110s3) repeatedly until the basic display (kilometer reading or temperature display) appears in the top of the multifunction display (A1p13) | |
| 17 | Turn key in electronic ignition switch control unit to position "0" |
