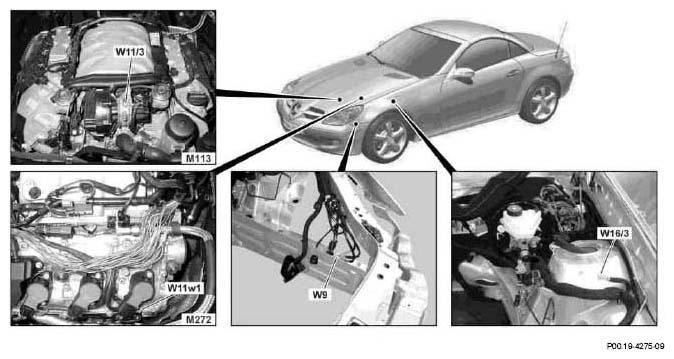

Arrangement and assignment of ground terminals, engine compartment (left) - GF00.19-U-2000-01TA
MODEL 171
| Ground point | Designation | Comp. | Designation | Conn. pin |
|---|---|---|---|---|
| W9 | Ground (at left headlamp unit) | → M4/7 | Electric suction fan engine and AC with integrated control | 1 |
| → N10/1 | Driver-side SAM control module with fuse and relay module | 2.5 | ||
| → N47-5 | ESP and BAS control module | 16 47 |
||
| → X11/4 | Data link connector | 4 | ||
| up to 05/05, M113 AMG | → N3/10 | ME-SFI [ME] control module | 5.5 5.6 5.7 5.8 |
|
| up to 05/05, M272 | → N3/10 | ME-SFI [ME] control module | F.2 F.4 F.6 |
|
| up to 05/05 | → X63/4 | CAN databus adapter connector (2-pin) | 1.3 | |
| W11w1 | Ground (engine - electrical line connected), left cylinder bank | |||
| M272 | → C4/2 | Radio interference suppression capacitor 2 | 2 | |
| M272 | → T1/4 | Cylinder 4 ignition coil | 3 | |
| M272 | → T1/5 | Cylinder 5 ignition coil | 3 | |
| M272 | → T1/6 | Cylinder 6 ignition coil | 3 | |
| W11/3 | Ground (engine - left side) | |||
| M113 AMG | → C4 | Radio interference suppression capacitor | 1 | |
| M113 AMG | → M33 | AIR pump | 2 | |
| W16/3 | Ground (output ground - component compartment - left) | → E1 | Left front headlamp unit | 1.1 2.1 3.1 4.1 |
| → E5/1 | Left fog lamp | 1 | ||
| → E6/1 | Left front side-marker lamp |
1 | ||
| → H2 | Left fanfare horn | 1 | ||
| → H2/1 | Right fanfare horn | 1 | ||
| AMG | → M2/2 | Control module box blower motor | ||
| AMG | → N10/1 | Driver-side SAM control module with fuse and relay module | 2.8 | |
| → N71 | Headlamp range adjustment control module | 20 | ||
| → S11 | Brake fluid indicator switch | 1 | ||
| MT, M272 | → S40/3 | Clutch pedal switch | 1 | |
| MT, M272 | → S40/5 | Start enable clutch pedal switch | 1 | |
| M272 | → Z6/48z2 | Ground connector sleeve |
