Separate inner rear wheelhouse - AR63.10-P-0670-01V
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-01A | Ball cutter, dia. 12 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1021-04A | Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 rpm) |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

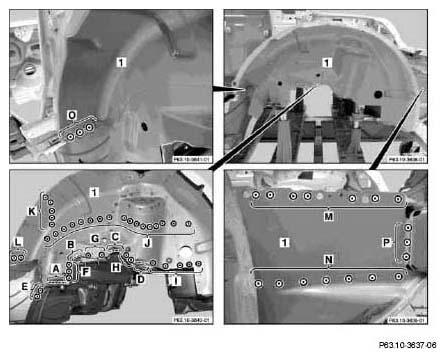

- Expose spot welds and welds on rear inner wheelhouse (1) (areas A, B, C, D, E, F, G, H, I, J, K, L, M, N, O and P).
- Separate welds on rear inner wheelhouse (1) (areas A, B, C and D).
- Cut spot welds out on rear inner wheelhouse (1) with
spot weld milling cutter or
spherical milling cutter (areas E, F, G, H, I, J, K, L, M, N, O and P).

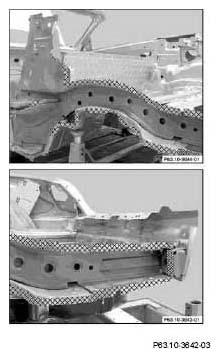

- Sand connection surfaces down to bare metal in shaded areas.
Sand spot weld flanges down to bare metal on both sides.
- Remove grinding and drilling chips with wet/dry vacuum cleaner.
- Coat insides of spot weld flanges with zinc dust paint.
