Prepare new rear fender - AR63.50-P-1400-03V

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Sand down rear fender (1) to bare metal in shaded area.

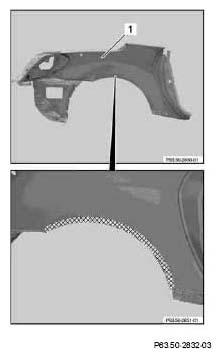

Fig 1: Identifying Shaded Area
Courtesy of MERCEDES-BENZ USA

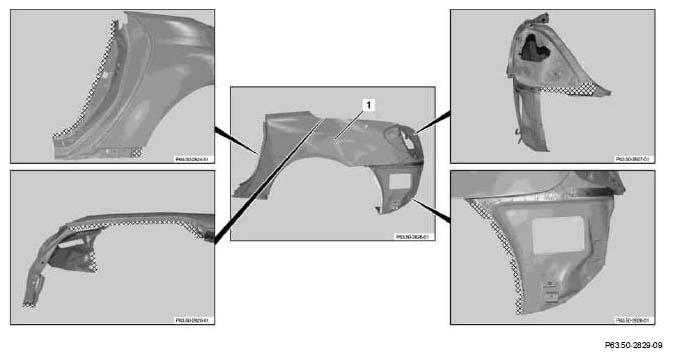

Fig 2: Identifying Connection Surface (Shaded Area)
Courtesy of MERCEDES-BENZ USA
Sand down connection surfaces on rear fender (1) to bare metal in shaded areas.
Sand down spot weld flanges to bare metal on both sides.
Coat insides of spot weld flanges with zinc dust paint.
