Connecting the wiring harness - AZ82.20-P-0001-02V

Wiring harness connection schematic illuminated door sill molding

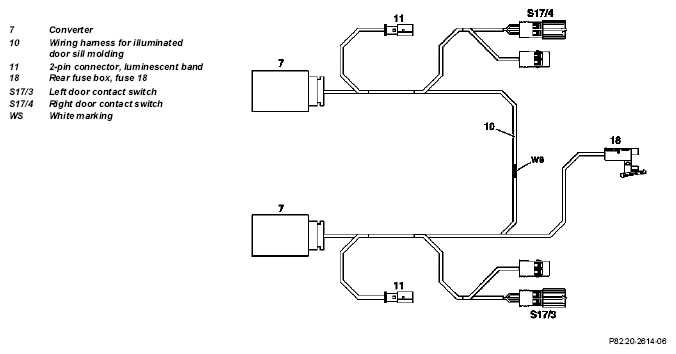

Fig 1: Wiring Harness Connection Schematic Illuminated Door Sill Molding

Courtesy of MERCEDES-BENZ USA

1. Route the wiring harness for the illuminated door sill molding (10) in the vehicle interior.

   The white marking on the wiring harness must be positioned at the white marking in the vehicle interior (arrow).

   Fig 2: Routing Wiring Harness For Illuminated Door Sill Molding In Vehicle Interior

   Courtesy of MERCEDES-BENZ USA
2. Route the branch-off line from the wiring harness for the illuminated door sill molding (10) through the left-side passage into the rear fuse box (18) in the trunk. Connect this line to fuse carrier 18. Insert a 7.5 A fuse.

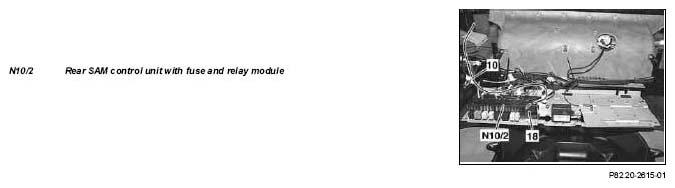

   Fig 3: Routing Branch-Off Line From Wiring Harness Through Left-Side Passage Into Rear Fuse Box In Trunk

   Courtesy of MERCEDES-BENZ USA
3. Unplug the connectors at the left (S17/3) and right (S17/4) door contact switches and then plug them into the connections on the adapter from the wiring harness for the illuminated door sill molding (10). Plug the connectors from the wiring harness for the illuminated door sill molding (10) to the door contact switches.
   Fig 4: Unplugging Connectors At Left (S17/3) And Right (S17/4) Door Contact Switches

   Courtesy of MERCEDES-BENZ USA
4. Connect the converter (7) to the wiring harness for the illuminated door sill molding (10) as shown in the picture. Secure it in place with a piece of self-adhesive felt.
   Fig 5: Connecting Converter To Wiring Harness For Illuminated Door Sill Molding

   Courtesy of MERCEDES-BENZ USA
5. Secure the wire with connector (2) for the illuminated door sill molding (1) in the recess with adhesive tape as shown in the picture (arrow).
   Fig 6: Securing Wire With Connector For Illuminated Door Sill Molding In Recess With Adhesive Tape

   Courtesy of MERCEDES-BENZ USA
6. Plug the connector (2) into the wiring harness.

   The illuminated door sill moldings (1) must be connected before voltage is supplied to the vehicle.

   Fig 7: Plugging Connector Into Wiring Harness

   Courtesy of MERCEDES-BENZ USA
