Tightening pattern for mounting the intake manifold - AR09.20-P-1310-03VA

INTAKE MANIFOLD

Number	Designation		Engine 272
BA09.20-P-1001-01N	Bolt of resonance intake manifold to cylinder head	Nm	9

Tighten bolts of intake manifold in numerical sequence.

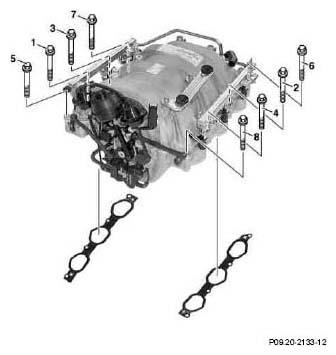

Fig 1: Identifying Intake Manifold Bolts Tightening Sequence

Courtesy of MERCEDES-BENZ USA
