Instrument cluster (IC), block diagram - GF54.30-P-0002-01RC

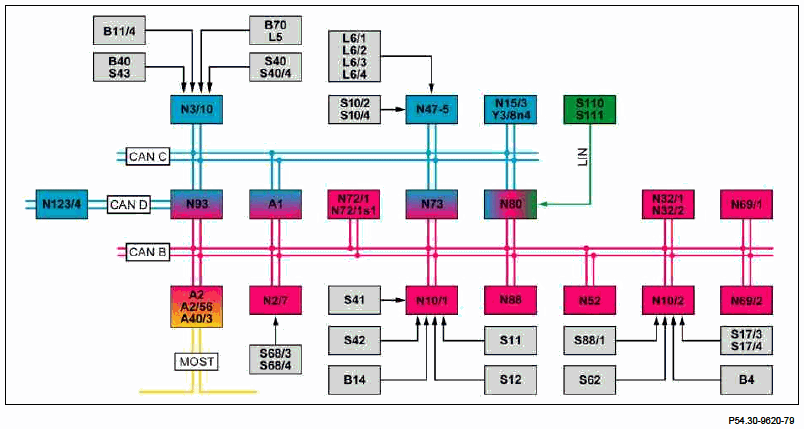

Fig 1: Instrument Cluster (IC), Block Diagram (1 Of 2)
G00541371Courtesy of MERCEDES-BENZ USA

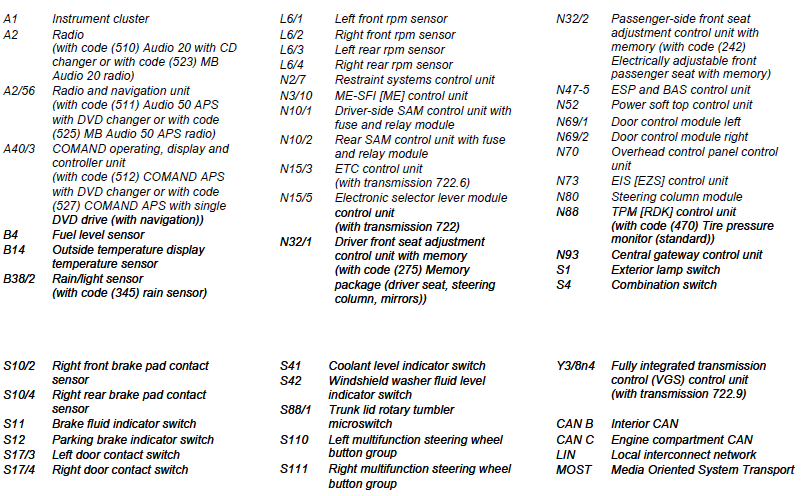

Fig 2: Instrument Cluster (IC), Block Diagram (2 Of 2)
G00541372Courtesy of MERCEDES-BENZ USA
