Carrying out bleeding operation - AR42.10-P-0010-02V
MODIFICATION NOTES
| Bleed screw to central clutch operator | *BA25.20-P-1001-01B |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA42.10-P-1002-10P | Bleed screw to brake caliper | Nm | 7 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 171 except 171.473 | Model 171.473 | |
|---|---|---|---|---|
| BA42.10-P-1002-12P | Bleed screw to brake caliper | Nm | 7 | 7 |
CLUTCH ACTUATION
| Number | Designation | Transmission 716.6 | |
|---|---|---|---|
| BA25.20-P-1001-01B | Bleed screw to central clutch operator | Nm | 9 |
- Adjust bleeding pressure at brake fluid changing unit to 2.0 bar.
- Remove bleed screw dust caps
- Connect hose of bleed bottle (01) to bleed screw of the brake caliper (1).
- Open bleed screw on brake caliper (1) and allow approx.
80 cm3 of brake fluid to flow out free of bubbles.
- Repeat bleeding process at the brake calipers (2, 3, 4).

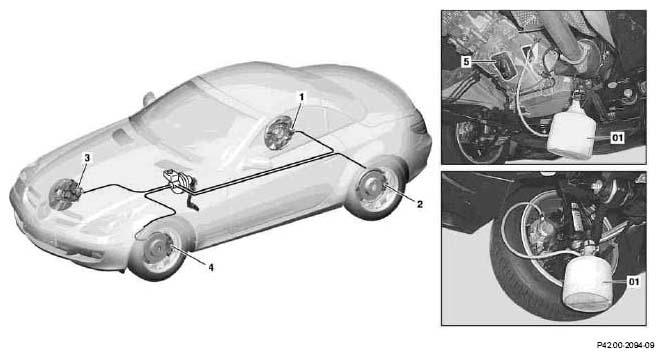

The numbering of the brake calipers (1, 2, 3, 4) indicates the order in which they should be opened during the bleeding operation.
- 6.1 Vehicles with manual transmission
Remove the cover (5) from the bell housing and repeat bleeding process at the bleed screw of the central clutch operator.
- 7 Attach dust caps and cover (5).
