Remove/install wheel carrier - AR35.20-P-0115V

MODEL 171.442 /454 /456 /473

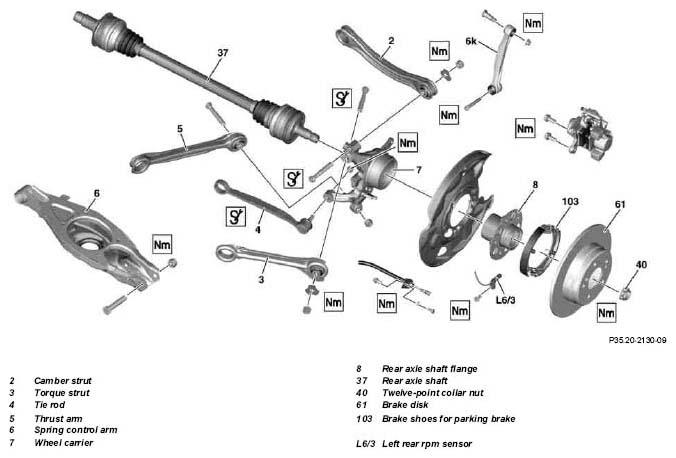

Fig 1: Identifying Wheel Carrier Components - Shown On Model 171.442

Courtesy of MERCEDES-BENZ USA

Shown on model 171.442

MODIFICATION NOTES

2.5.07	Self-locking nut, strut rod to wheel carrier M12	*BA35.20-P-1002-03A
3.5.07	Self-locking nut, tie rod to wheel carrier, silver or blue M10x1, 5	*BA35.20-P-1002-04A

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	-
1	Raise vehicle with lifting platform		AR00.60-P-1000V
2	Remove wheel.
	Remove/install wheels, rotate if necessary		AP40.10-P-4050V
3	Detach twelve-point collar nut (40) from rear axle shaft (37)		AR35.30-P-0115-01V
			*BA35.30-P-1001-01A
4	Remove brake caliper and hang to one side with attached brake line	The brake line may not be tensioned.
		Model 171.442 /454/ 456	AR42.10-P-0080V
		Model 171.473	AR42.10-P-0080AC
5	Remove brake disc (61)	Model 171.442 /454/ 456	AR42.10-P-0220V
		Model 171.473	AR42.10-P-0220AC
6	Remove brake shoes of parking brake (103).		AR42.20-P-0530V
7	Detach brake cable from wheel carrier (7)		*BA42.20-P-1002-01A
8	Remove left rear RPM sensor (L6/3) from wheel carrier (7).		*BA42.30-P-1001-02A
9	Detach tie rod (4) from wheel carrier (7)		*BA35.20-P-1002-04A
10	Remove thrust arm (5) from wheel carrier (7)		*BA35.20-P-1003-05A
11	Remove torque strut (3) from wheel carrier (7)		*BA35.20-P-1002-03A
		Retainer wrench	Figure
12	Detach camber strut (2) from wheel carrier (7).	Installation: First position camber strut on wheel carrier.
			*BA35.20-P-1003-02A
		Retainer wrench	Figure
13	Press rear axle shaft (37) out of wheel carrier (7)	Do not damage pulse ring for RPM sensor and boot of rear axle shaft. If the rear axle shaft is difficult to remove: ↓ Press out/pull in rear axle shaft at the wheel carrier.
14	Unscrew bolt holding spring control arm (6) to wheel carrier (7).		*BA35.20-P-1002-01A
15	Pull wheel carrier (7) upwards out of the spring control arm (6)	Installation: When moving the wheel carrier in do not damage the rubber boot of the supporting joint.
16	Install in the reverse order
17	Adjust parking brake		AR42.20-P-0540V

REAR AXLE SHAFT

Number	Designation			Model 171
BA35.30-P-1001-01A	Collar nut, rear axle shaft to rear axle shaft flange	Stage 1	Nm	220
BA35.30-P-1001-01A	Collar nut, rear axle shaft to rear axle shaft flange	Stage 2	∠°	-

PARKING BRAKE

Number	Designation		Model 171
BA42.20-P-1002-01A	Self-locking bolt, brake cable at rear wheel carrier	Nm	20

REAR AXLE RPM SENSOR

Number	Designation		Model 171
BA42.30-P-1001-02A	Self-locking bolt of rear axle RPM sensor to wheel carrier	Nm	8

TIE ROD

Number	Designation				Model 171
BA35.20-P-1002-04A	Self-locking nut, tie rod at wheel carrier	yellow M10 x 1		Nm	30
		silver or blue M10 x 1		Nm	25
		silver or blue M10 x 1.5	Stage 1	Nm	20
		silver or blue M10 x 1.5	Stage 2	∠°	45

TORQUE STRUT

Number	Designation		Model 171
BA35.20-P-1003-05A	Self-locking nut, thrust arm to wheel carrier	Nm	50
BA35.20-P-1003-05A	Self-locking nut, thrust arm to wheel carrier	∠°	45

TORQUE STRUT

Number	Designation			Model 171
BA35.20-P-1002-03A	Self-locking nut, torque strut to wheel carrier	M12	Nm	70
BA35.20-P-1002-03A	Self-locking nut, torque strut to wheel carrier	M16	Nm	-

CAMBER STRUT

Number	Designation			Model 171
BA35.20-P-1003-02A	Self-locking nut, camber strut to wheel carrier.	Stage 1	Nm	50
BA35.20-P-1003-02A	Self-locking nut, camber strut to wheel carrier.	Stage 2	∠°	45

SPRING CONTROL ARM

Number	Designation			Model 171
BA35.20-P-1002-01A	Self-locking nut, spring control arm to wheel carrier.	Stage 1	Nm	120
BA35.20-P-1002-01A	Self-locking nut, spring control arm to wheel carrier.	Stage 2	∠°	-

Fig 2: Identifying Retainer Wrench (202 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
