Remove/install spring link rubber mount - AR35.20-P-0114-01V

Fig 1: Identifying Extractor And Insertion Tools (129 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Remove

1. Press rubber bushing (6b) out of spring link using the pressing-out and pressing-in tool (06a, 06b).

   To permit exact pressing out of seized rubber bushings (6b), use a flat pressure plate (06x) to press out the small protrusion of the rubber bushing as far as the spring link sleeve.

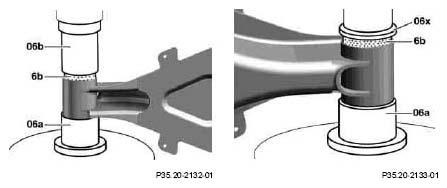

   Fig 2: Pressing Rubber Bushing

   Courtesy of MERCEDES-BENZ USA

   Install

2. Press rubber bushing (6b) with pressing-out and pressing-in tool (06a, 06b) into the spring link until the two ends of the steel sleeve are the same distance from the spring link sleeve.
   Fig 3: Pressing Rubber Bushing

   Courtesy of MERCEDES-BENZ USA
