Instrument cluster (KI), location of components - GF54.30-P-0002-04RC

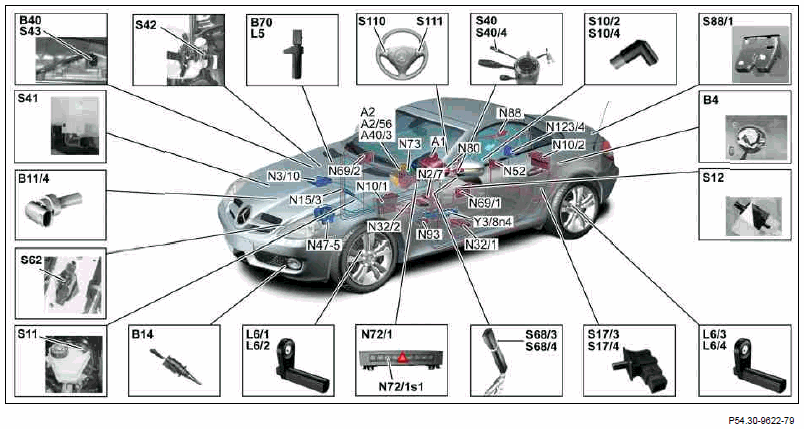

Fig 1: Instrument Cluster (KI), Location Of Components (1 Of 2)
G00541373Courtesy of MERCEDES-BENZ USA

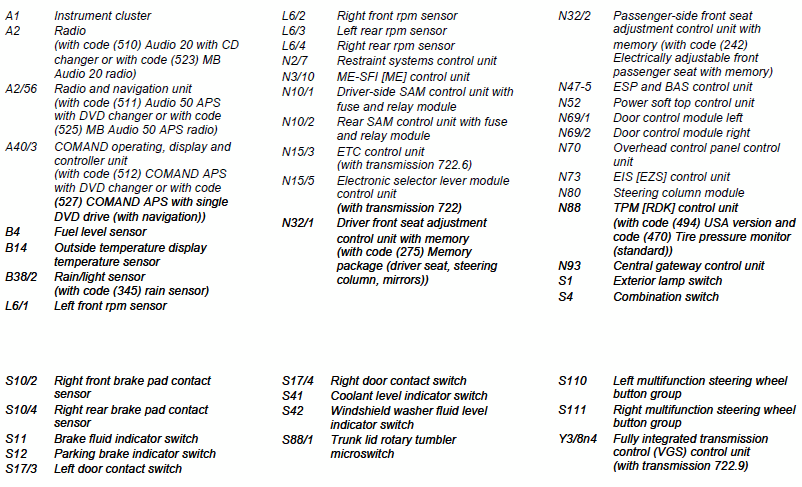

Fig 2: Instrument Cluster (KI), Location Of Components (1 Of 2)
G00541374Courtesy of MERCEDES-BENZ USA
