Arrangement and assignment of the wiring and plug connectors, trunk (left) - GF00.19-U-1000-06TA

MODEL 171

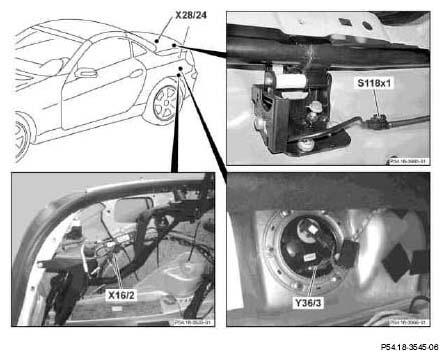

Fig 1: Identifying Arrangement And Assignment Of Wiring And Plug Connectors, Trunk (Left)
G05026774Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Item Designation Cable colors Cable colors Notes
S118x1 Tubular frame "locked" limit switch connector BN PLUG 1 SOCKET
    WHYE PLUG 2 SOCKET
X16/2 Left rear power window motor connector RDBK PLUG 1 SOCKET RDBK
    RDWH PLUG 2 SOCKET RDWH
X36/3 Fuel pump wiring harness connector BN PLUG 1 SOCKET BN
    BKGN PLUG 3 SOCKET BKGN
    BUGN PLUG 5 SOCKET BUGN
    BN PLUG 6 SOCKET BN
