Arrangement and assignment of the wiring and plug connectors, engine compartment (left) - GF00.19-U-1000-01TA

MODEL 171

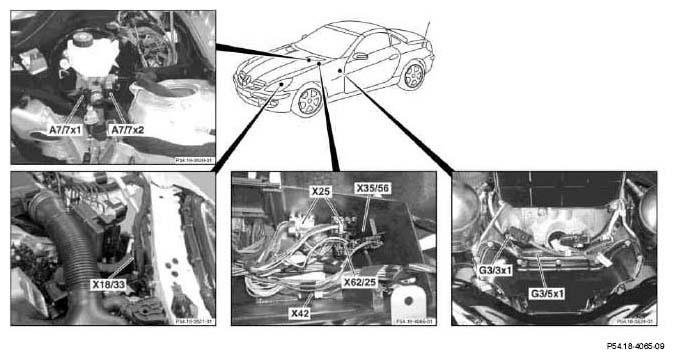

Fig 1: Identifying Arrangement And Assignment Of Wiring And Plug Connectors, Engine Compartment (Left) (1 Of 2)
G05026768Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

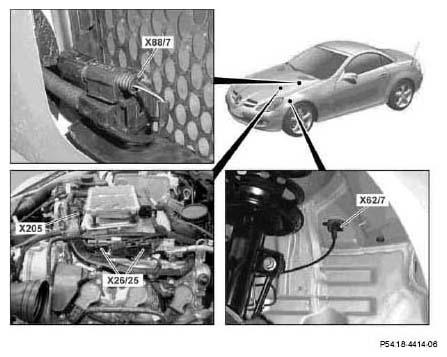

Fig 2: Identifying Arrangement And Assignment Of Wiring And Plug Connectors, Engine Compartment (Left) (2 Of 2)
G05026769Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Item Designation Cable colors Cable colors Notes
A7/7x1 Diaphragm travel sensor connector PLUG A.1 SOCKET VTBU
    PLUG A.2 SOCKET BNBU
    PLUG A.3 SOCKET BU
A7/7x2 Release switch and solenoid valve connector PLUG B.1 SOCKET YEBU
    PLUG B.2 SOCKET GNBU
    PLUG B.3 SOCKET YEWH
    PLUG B.4 SOCKET RDWH
    PLUG B.5 SOCKET WHBU
G3/3x1 Left O2 sensor upstream TWC [KAT] connector RDGN PLUG 1 SOCKET M113 AMG
    BNBK PLUG 2 SOCKET M113 AMG
    GN PLUG 3 SOCKET M113 AMG
    BK PLUG 4 SOCKET M113 AMG
G3/3x1 Left O2 sensor upstream TWC [KAT] connector BKVT PLUG 1 SOCKET M272
    BKGN PLUG 2 SOCKET M272
    PK PLUG 3 SOCKET M272
    RDGN PLUG 4 SOCKET M272
    YEWH PLUG 5 SOCKET M272
    BKYE PLUG 6 SOCKET M272
G3/5x1 Left O2 sensor downstream TWC [KAT] connector RDBK PLUG 1 SOCKET M113 AMG
    BNBK PLUG 2 SOCKET M113 AMG
    YEBN PLUG 3 SOCKET M113 AMG
    YE PLUG 4 SOCKET M113 AMG
G3/5x1 Left O2 sensor downstream TWC [KAT] connector RDGN PLUG 1 SOCKET M272
    VTYE PLUG 2 SOCKET M272
    BNYE PLUG 3 SOCKET M272
    GYWH PLUG 4 SOCKET M272
X18/33 SPS [PML] connector GNYE PLUG 1 SOCKET BNBK
    BNGN PLUG 2 SOCKET RDBN
X25 (1) Engine compartment/FFS [RBA] connector (diagnosis) PLUG 1 SOCKET
    PLUG 2 SOCKET
    BUYE PLUG 3 SOCKET BUYE
    RDYE PLUG 4 SOCKET RDYE
    BN PLUG 5 SOCKET BN
    BUWH PLUG 6 SOCKET BUWH
    BN PLUG 7 SOCKET BN
    BUBK PLUG 8 SOCKET BUBK
    PLUG 9 SOCKET
    PLUG 10 SOCKET
    PLUG 11 SOCKET
    PLUG 12 SOCKET
    GN PLUG 13 SOCKET GN
    WH PLUG 14 SOCKET WH
    RDVT PLUG 15 SOCKET VT
    BNGN PLUG 16 SOCKET BNGN
    RDBK PLUG 17 SOCKET RDBK
    BUBK PLUG 18 SOCKET BUBK
    PLUG 19 SOCKET
    PLUG 20 SOCKET
X25 (2) Engine compartment/FFS [RBA] connector (diagnosis) GNBU PLUG 1 SOCKET GNBU
    BNVT PLUG 2 SOCKET BNVT
    RDBU PLUG 3 SOCKET RDBU
    PLUG 4 SOCKET
    BUWH PLUG 5 SOCKET BUWH
    PLUG 6 SOCKET
    PLUG 7 SOCKET
    WH PLUG 8 SOCKET WH
    GN PLUG 9 SOCKET GN
    YEGN PLUG 10 SOCKET YEGN up to 05/05
    VT PLUG 11 SOCKET VT
    PLUG 12 SOCKET
    PLUG 13 SOCKET
    PLUG 14 SOCKET
    GYBK PLUG 15 SOCKET GYBK
    RDBK PLUG 16 SOCKET RDBK
    GYVT PLUG 17 SOCKET GYVT
    BNGY PLUG 18 SOCKET BNGY
    RDGN PLUG 19 SOCKET RDGN
    GN PLUG 20 SOCKET GN M272
    BNGN PLUG 20 SOCKET BNGN M113 AMG
X26/25 (1) Engine/chassis connector (24-pin) RDBU PLUG 1 SOCKET BUGN M272
    BNYE PLUG 2 SOCKET BN M272
    VTWH PLUG 3 SOCKET VTWH M272
    RDBU PLUG 4 SOCKET RDBU M272
    RDGN PLUG 5 SOCKET RDGN M272
    GYOG PLUG 7 SOCKET M272
X26/25 (2) Engine/chassis connector (24-pin) RDBK PLUG 1 SOCKET RDBN M272
    BK PLUG 2 SOCKET RDWH M272
X35/56 O2 sensor connector BU PLUG 1 SOCKET BU M113 AMG
    BUBN PLUG 2 SOCKET BUBN M113 AMG
    BNGY PLUG 3 SOCKET BNGY M113 AMG
    RDBK PLUG 4 SOCKET RDBK M113 AMG
    YE PLUG 5 SOCKET YE M113 AMG
    YEBN PLUG 6 SOCKET BUBN M113 AMG
    BNBK PLUG 7 SOCKET BNBK M113 AMG
    RDBK PLUG 8 SOCKET RDBK M113 AMG
X42 ATA [EDW] connector (front/rear) WH PLUG 1 SOCKET WH
    BN PLUG 2 SOCKET BN
X62/7 Left front axle multiple circuit junction connector, in component compartment PLUG 3 SOCKET RDGN
    PLUG 4 SOCKET BUGN
X62/25 Headlamp range adjustment rear axle sensor connector WH PLUG 1 SOCKET WH
    BU PLUG 2 SOCKET BU
    BK PLUG 3 SOCKET BK
X88/7 Left washer nozzle hose heater connector (1-pin) BN PLUG 1 SOCKET LBN
    BKBU PLUG 2 SOCKET BKBU
X205 Tumble flap/variable intake manifold switchover valves connector PLUG 1 SOCKET VTBU M272
    PLUG 2 SOCKET RDGN M272
    PLUG 3 SOCKET VTGN M272
